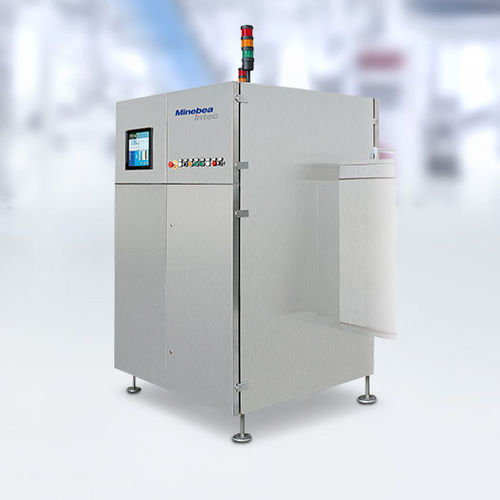

Dyxim S 瓶罐類品X-ray檢測機
The Dyxim S is a high power system for reliably inspecting tall containers at very high speeds.
- Outstanding detection performance while ensuring maximum line speeds
- Multi-lane solutions for up to eight lines through one detector
- Integrated network compatibility, allowing remote access by technicians for quick error diagnosis and support
- Powerful interfaces, including USB and Ethernet, allow an easy integration into data networks
- Intuitive operator control through an icon based user interface. Products can easily be set up or adjusted by line operators without requiring special training or previous X-ray knowledge and without the involvement of an engineer
Brochure
Datasheet
Specification
| Technical Data | Dyxim S |
|---|---|
| X-ray power | ≤ 90 kV; ≤ 20 mA |
| Detector resolution | Linear detector, 0.4 mm |
| Belt Speed Range | Up to 120 m/min |
| User interface | 15" touchscreen |
| Radiation Safety | FDA CFR 21 part 1020,40 |
| Protection Rating | IP 65 |
| Conveyor Height | 700–870 mm |
