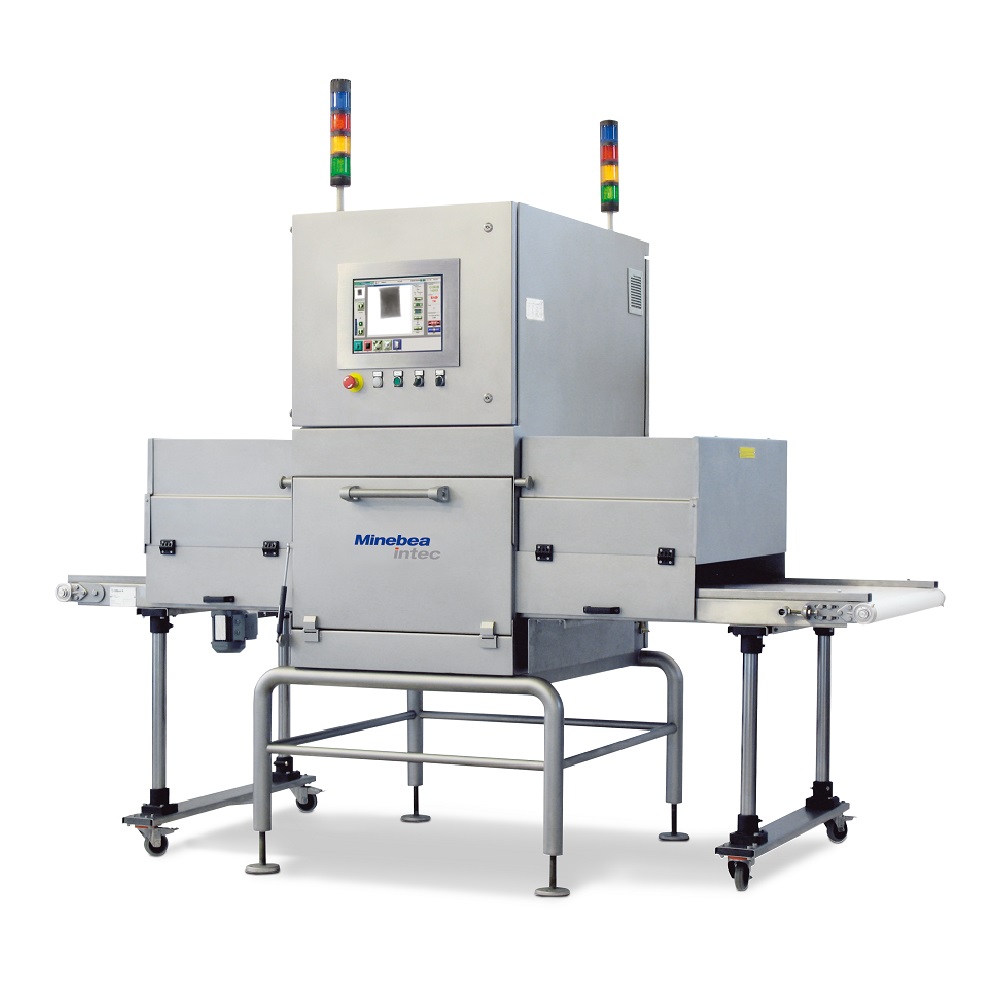

Dyxim-FB 包裝產品X-ray檢測機
When increasing product size and material density, high energy systems are required to ensure a reliable detection of foreign bodies. This is what the Dyxim FB series offers.
- For inspecting large packages such as sacks and boxes up to a size of 700 mm x 360 mm containing dry or liquid food products
- While identifying product contamination, the Dyxim-FB series can simultaneously perform in-line quality checks, including measuring mass, counting components and identifying missing or damaged products
Brochure
Specification
| Technical Data | FB 60 | FB 80/120 | FB 160 |
|---|---|---|---|
| X-ray Power | ≤ 90 kV; ≤ 5 mA | ≤ 90 kV; ≤ 5 mA | ≤ 90 kV; ≤ 10 mA |
| Detection Resolution | Linear Detector, 0.4mm | Linear Detector, 0.4mm | Linear Detector, 0.8mm |
| Belt Speed Range | Up to 60 m/min | Up to 70 m/min | Up to 70 m/min |
| Interface | 15" touchscreen | ||
| Protection Rating | IP 54 | ||
| Conveyor Height | 860 - 1,020 mm | 860 - 1,010 mm | 860 - 1,010 mm |
