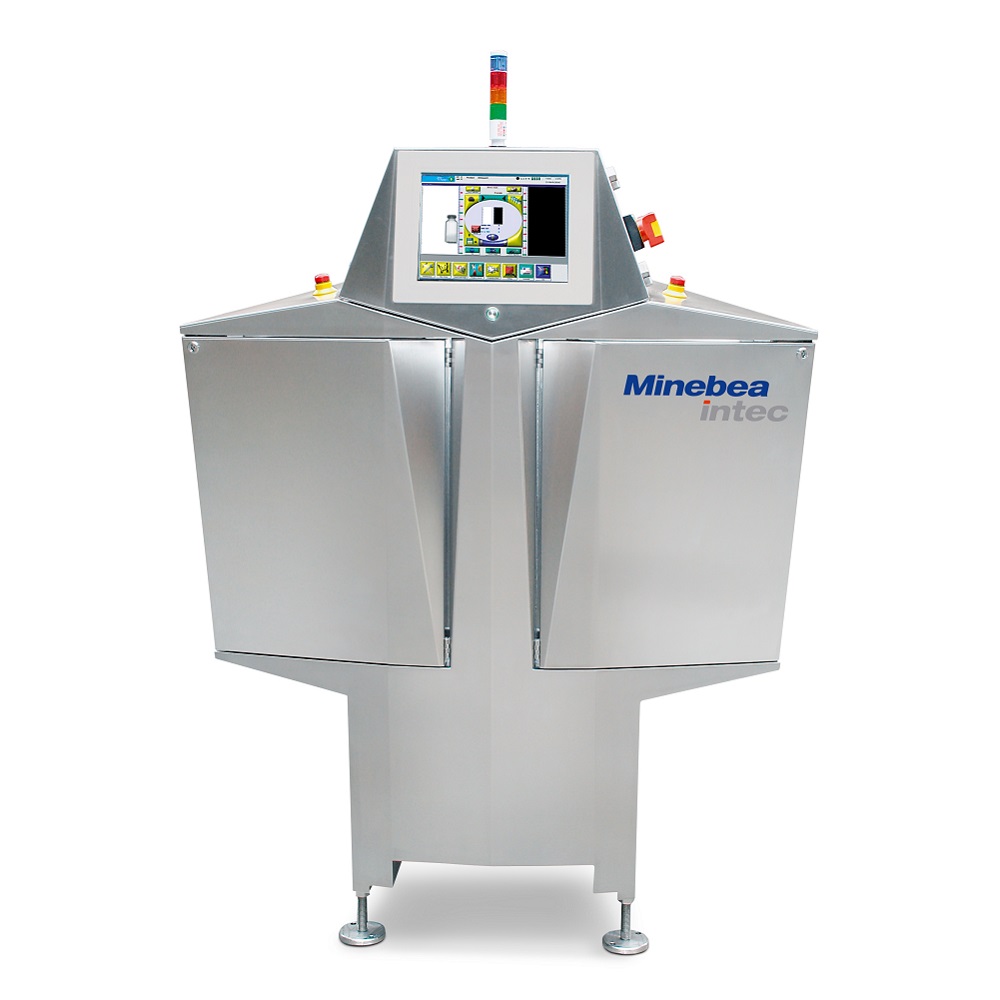

Dymond S 瓶罐類品X-ray檢測機
The Dymond S combines high detection sensitivity with low power consumption. The unit is optionally available with a so-called chicane belt. Ideal for those situations where only very limited space is available.
- Outstanding detection performance while ensuring maximum line speeds
- Multi-lane solutions for up to eight lines through one detector
- Integrated network compatibility, allowing remote access by technicians for quick error diagnosis and support
- Powerful interfaces, including USB and Ethernet, allow an easy integration into data networks
- Intuitive operator control through an icon based user interface. Products can easily be set up or adjusted by line operators without requiring special training or previous X-ray knowledge and without the involvement of an engineer
Brochure
Datasheet
Specification
| Technical Data | Dymond S |
|---|---|
| X-ray power | 80 kV, 4 mA |
| Detector resolution | 0.8 mm (standard) 0.4 mm (optional) |
| Belt Speed Range | 80 m/min |
| Human interface | 15" touchscreen |
| Radiation Safety | FDA CFR 21 part 1020,40 |
| Protection Rating | IP34 (standard) | IP65 (optional) |
| Conveyor Height | 750 – 1050 mm |
