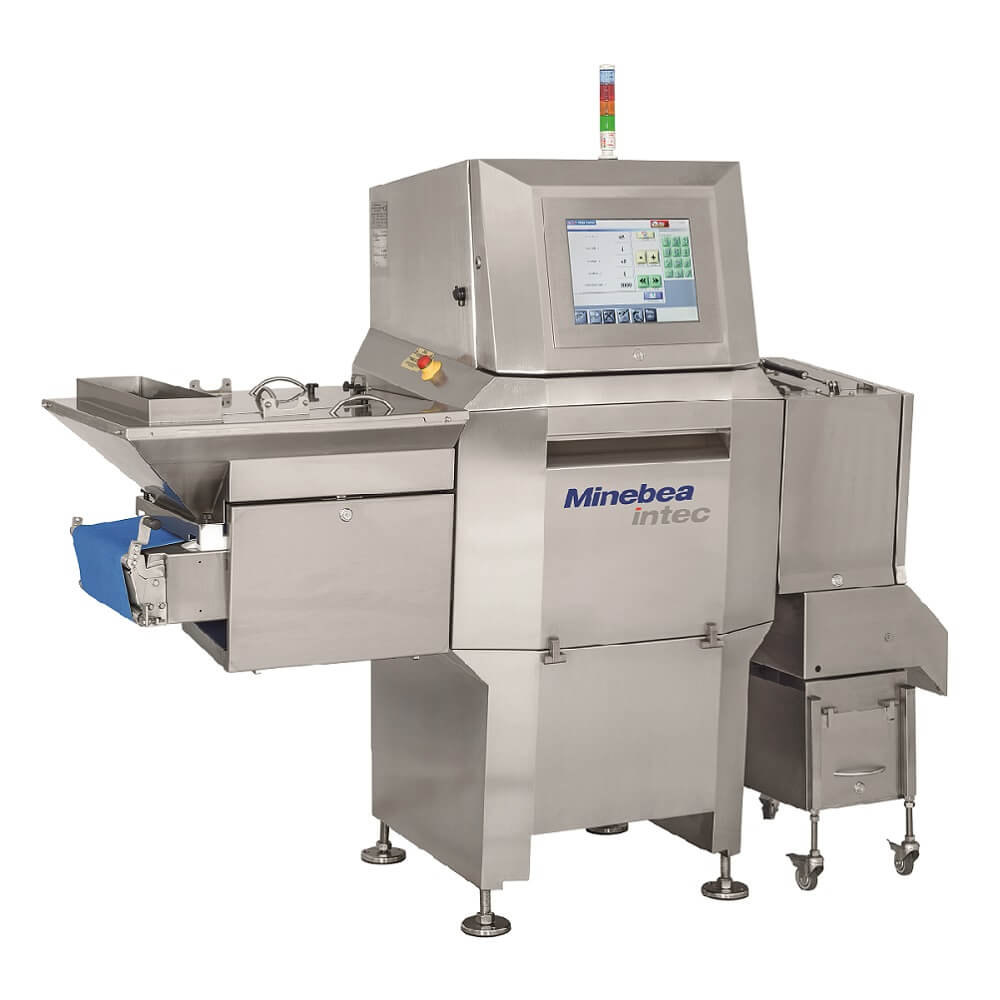

Dymond Bulk 散裝物料X-ray檢測機


Dymond Bulk guarantees precise X-ray inspection of bulk materials in the food industry. Foreign bodies such as stones or metal are consistently detected and removed from the material flow to protect both products and machines.




Dymond Bulk 散裝物料X-ray檢測機

Dymond Bulk guarantees precise X-ray inspection of bulk materials in the food industry. Foreign bodies such as stones or metal are consistently detected and removed from the material flow to protect both products and machines.

X-ray Dymond Bulk
  • Maximum detection sensitivity for product and machine safety
  • Intuitive operation
  • Worldwide service, including remote support
  • High-performance interfaces for straightforward integration into networks
Specification
Technical Data Dymond Bulk 80 Dymond Bulk 120

X-ray power 70 kV - 1.2 mA | 80 kV - 2 mA 80 kV, 2 mA
Detector resolution 0.8 or 0.4 mm 0.8 mm (standard)
Belt Speed Range 10 to 49 m/min (with standard drum motor) | Up to 73 m/min 10 to 49 m/min (with standard drum motor) | Up to 79 m/min
Approval CE, UL | CSA
User interface 15" touchscreen
Radiation protection FDA CFR 21 part 1020,40
International protection class IP34 (standard) | IP65 with Nema4X air conditioner | IP69K on request
High conveyor belt 800 – 999 mm
