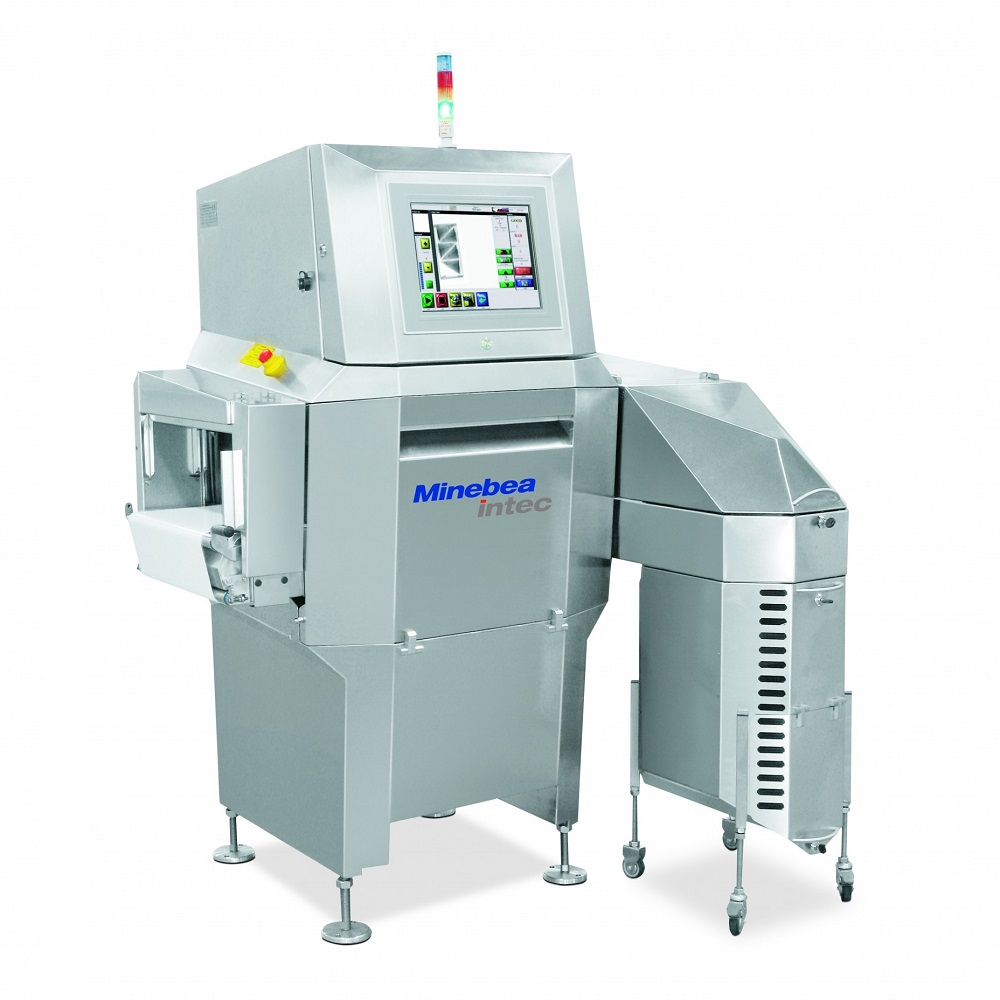

Dymond 包裝產品X-ray檢測機
The Dymond Series of X-ray inspection systems is extremely versatile. Featuring 4 models it is able to cover the majority of applications for inspecting packaged products. With belt widths up to 800 mm it is ideal for multi-lane applications of up to 8 traces.
- Hygienic design, following EHEDG principles featuring sloped surfaces and curved edges allowing easy inspection and cleaning, resulting in considerable time and cost savings
- A wide range of standard possibilities for ensuring product integrity and quality including checking completeness, determining product mass and determining compartment mass
- Covering belt widths from 200 mm up to 800 mm
- 15" color touchscreen display
- Combining high detection sensitivity with low power consumption
Brochure
Datasheet
Specification
Technical Data | Dymond 40 | Dymond 80 | Dymond 120 | Dymond 160 |
---|---|---|---|---|
X-ray power | 70 kV; 1.4 mA | 70 kV; 1.2 mA | 80 kV; 2 mA (Optional) | 80 kV; 2mA | 90 kV; 3.5 mA |
Detector resolution | 0.4 mm | 0.8 mm (standard) 0.4 mm (optional) | 0.8 mm | 0.8 mm |
Belt Speed Range | 10 to 49 m/min (standard) | Up to 73 m/min (optional) | |||
Approval | CE, UL | CSA | |||
Human Interface | 15" touchscreen | |||
Radiation Safety | FDA CFR 21 part 1020,40 | |||
Protection Rating | IP34 (standard) | IP65 Optional | IP69K on request | |||
Conveyor Height | 800 – 999 mm |
