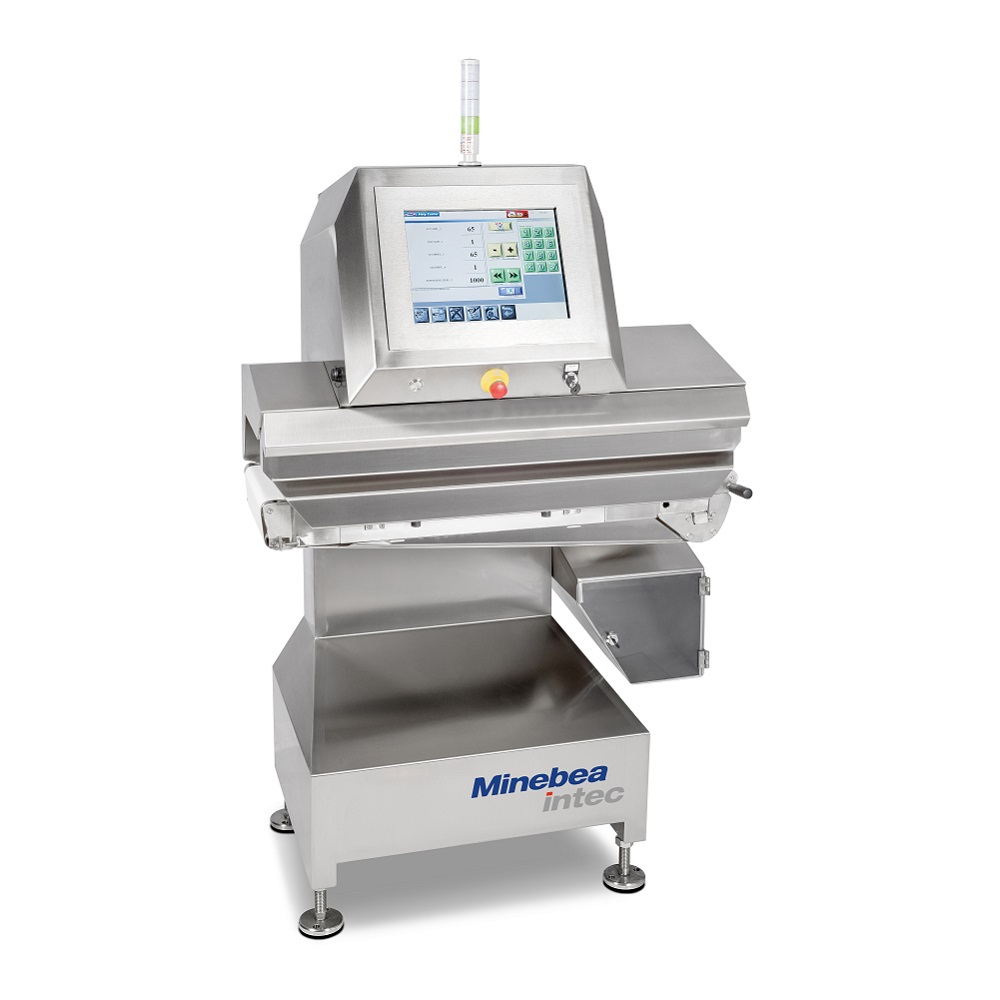

Dylight 包裝產品X-ray檢測機
The X-ray inspection system Dylight guarantees extremely high levels of safety for your packaged food. This true ‘Plug and Play’ solution combines all functions in one compact unit.
- Extremely compact design
- Plug and Play: All functions in one unit
- Takes up only one metre of space in your production line
- Complete with separator and run-off container Maximum product safety thanks to the highest degree of detection sensitivity
- Intuitive, time-saving operation
- Easy installation and integration into networks
Brochure
Datasheet
Specification
| Technical Data | Dylight |
|---|---|
| X-ray power | 65 kV, 4 mA |
| Detector resolution | 0.8 mm (standard) 0.4 mm (optional) |
| Belt Speed Range | 10 to 49 m/min |
| Approval | CE | UL |
| Human Interface | 15" touchscreen |
| Radiation Safety | FDA CFR 21 part 1020,40 |
| Protection Rating | IP 54 (complete system) | IP 65 (detection area) |
| Conveyor Height | 800 mm (+200 mm) |
