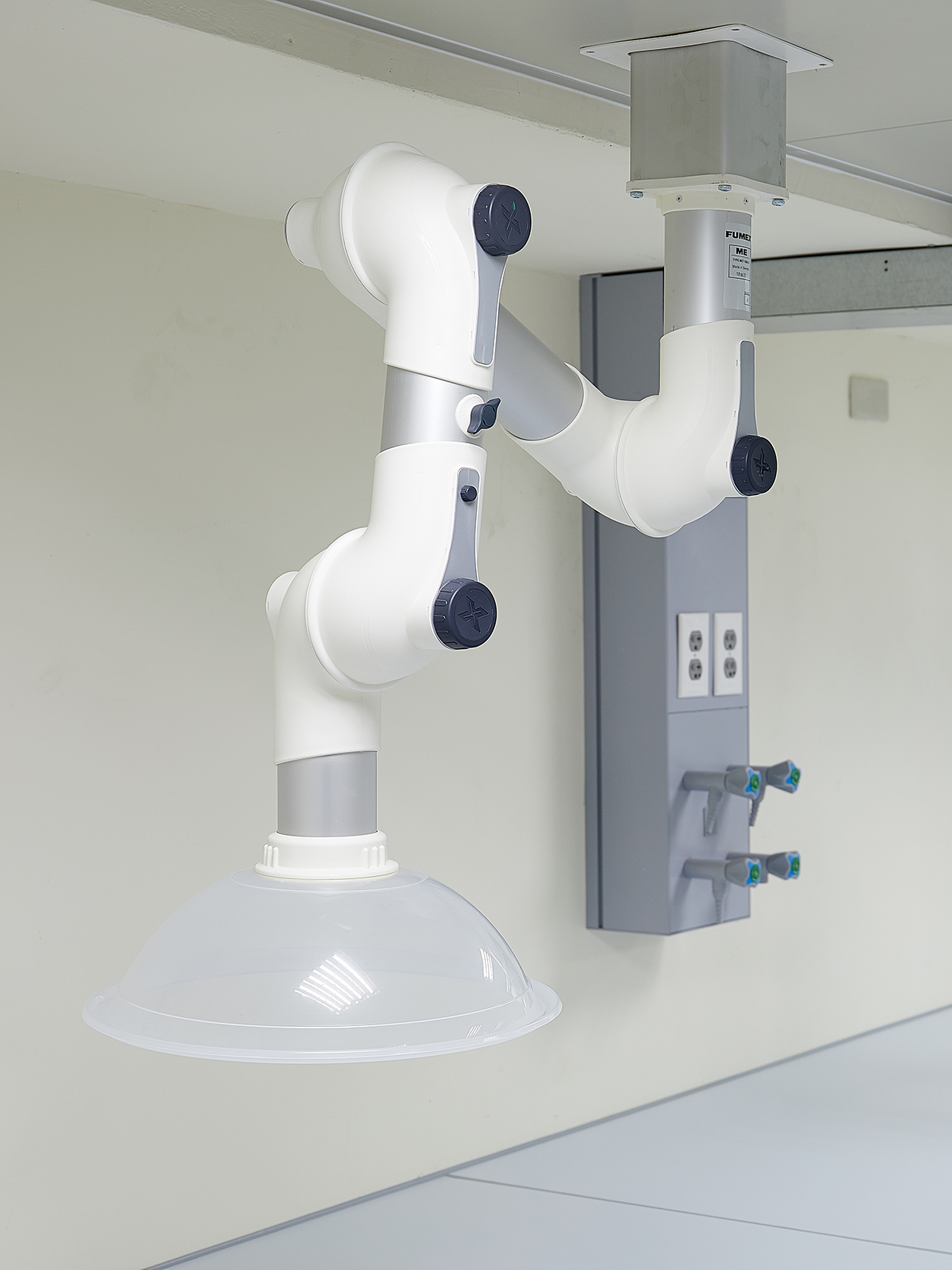

Extraction arm 萬向抽氣罩


用途分析
- 用於特定區域排氣
- 可固定於功能翼、功能脊、牆壁、或水泥天花板。
技術參數
Dimensions | 50 | 75 |
---|---|---|
Pipe system Ø [mm]1) | 50 | 75 |
Coupling hood Ø [mm] | 350 | |
Extraction maximum [mm] | 50 | 75 |
1) Pipe system Ø 50 mm only for fastening to the service wing |
Ventilation technology | 50 | 75 |
---|---|---|
Minimum air exchange rate [m3/h] | 50 | 100 |
Admission pressure [Pa] | 150 | |
Admission pressure [Pa] with Waldner airflow damper | 200 |
Material | |
---|---|
Pipe | Anodised aluminum |
Hinged bracket | Polypropylene |
Coupling hood | Polycarbonate |
Suction tip | Anodised aluminum/td> |
