More safety, economy and comfort than ever
The highly innovative Secuflow fume cupboard with supportive flow technology for optimum flow regulation requires an extract air volume of only 270 m3/h/lfm while operating safely. This significantly reduced energy consumption makes laboratory operations even more economical.
With the Secuflow fume cupboard, supportive air is systematically directed into the internal workspace from the aerodynamically designed sill on the side panel and along the worktop. This prevents turbulences and perfectly stabilises the inflow air.
The Secuflow fume cupboard is a perfectly coherent product which has passed all final EN 14175 and ASHRAE 110/1995 tests with excellent results.
Reduced energy consumption – increased profitability
Waldner bench mounted fume cupboards with side installation which are tested in accordance with EN 14175, e.g., use 350 m³/h/lfm, all bench mounted fume cupboards with Secuflow technology require 270 m³/h/lfm. In this way, the Secuflow reduces the air volume by 33% compared with conventional fume cupboards. This means significant savings not only in energy costs and investment costs for the ventilation system, but also in the dimensioning of the entire building.
Safety through the intake airflow profile on the front edge of the fume cupboard worktop
It prevents turbulence that could carry pollutant emissions. The result is Waldner highly innovative Secuflow with supportive flow technology for optimum flow regulation.
Largest possible access area

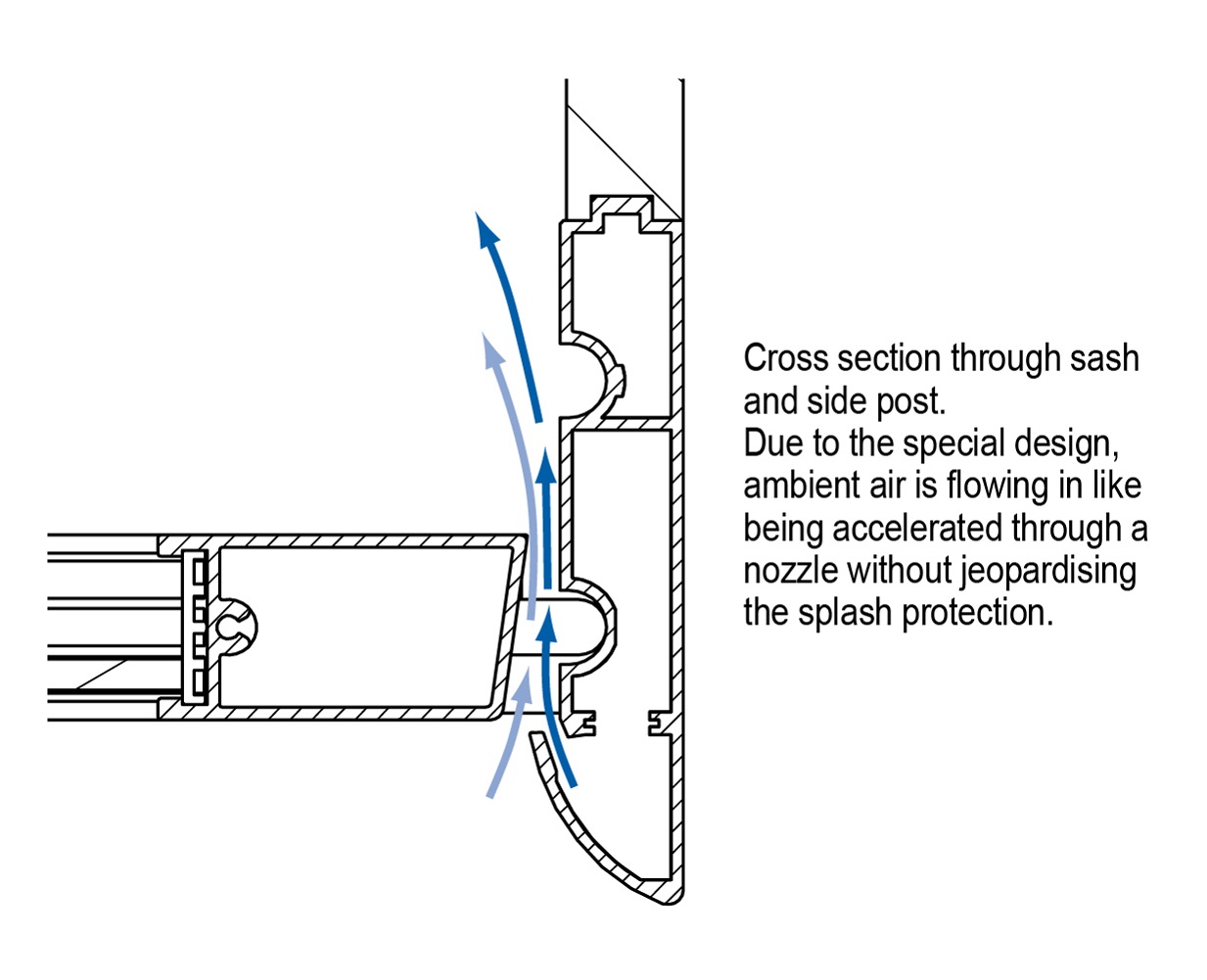

The slender, patented side posts of Waldner fume cupboards offer an increased nominal width of the internal workspace and due to their special shape ensure that there is little turbulence in the intake air.

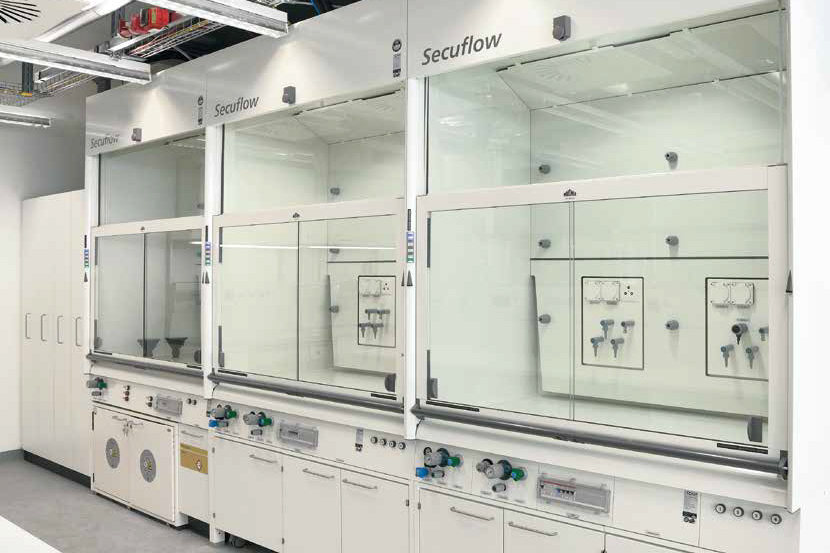

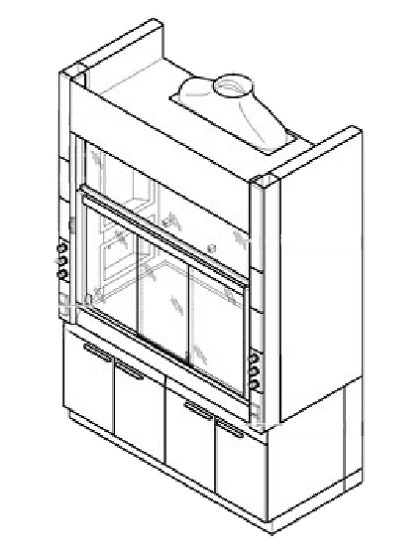

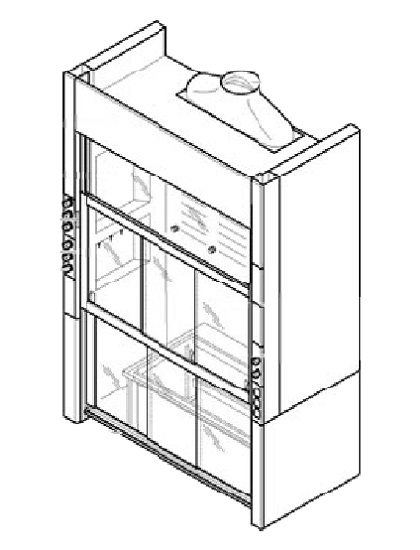

Bench-mounted fume cupboard

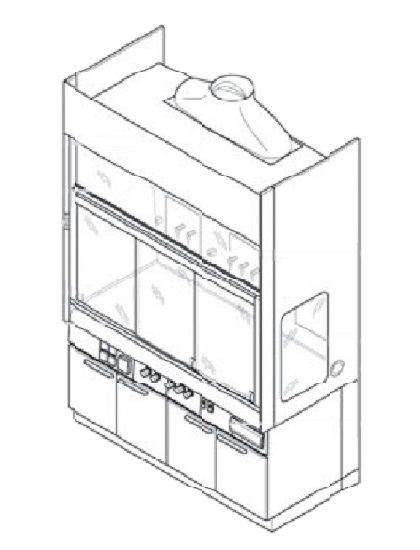

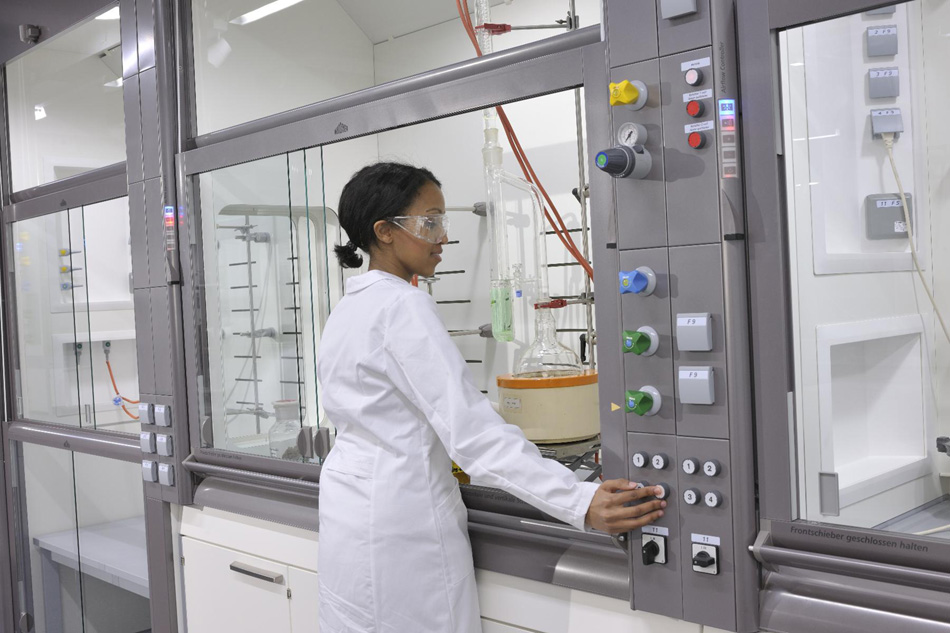

Fume hood with services on side walls

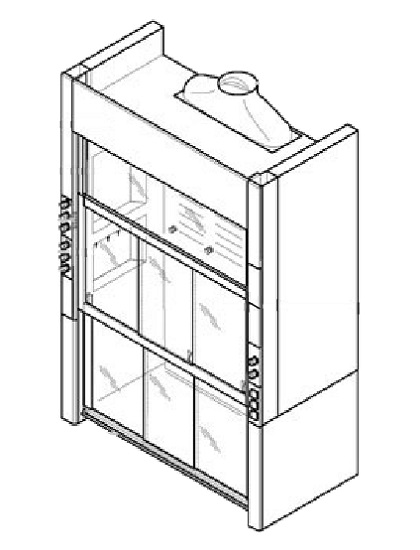

Walk-in fume hood
Low level fume hood
- Secuflow bench mounted fume hood
- Secuflow low ceiling bench mounted fume hood
- Secuflow fume hood with services on side walls
- Secuflow low ceiling bench mounted fume hood with side installation
- Secuflow bench mounted fume hood with side installation
- Secuflow bench mounted fume hood with side installation for work performed while seated
