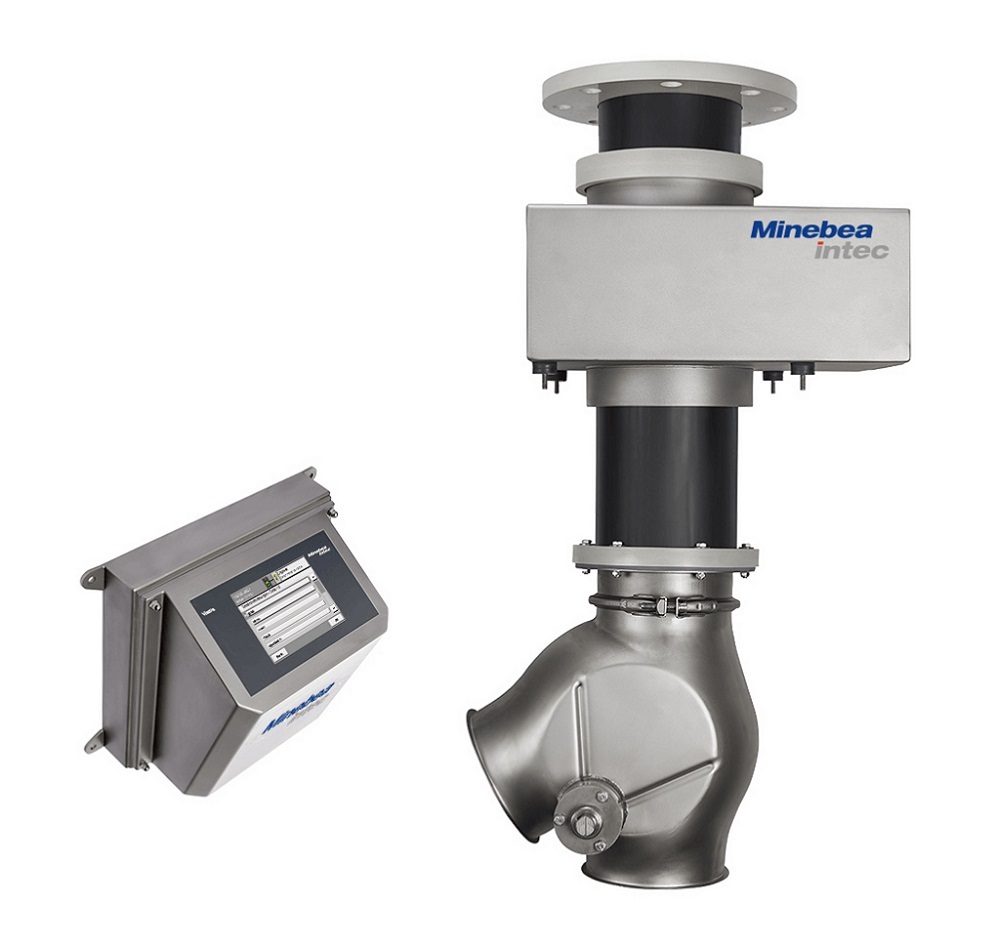

Freefall Metal Detection System Vistus 高敏度自由落體式金檢機
The freefall metal detection system Vistus ensures the reliable inspection and removal of metallic foreign bodies from any kind of food products in powder or granule form that is transported with the use of gravity through a pipe, e.g. milk powder, wheat, nuts or cornflakes.
Perfect your metal detection system; choose the right components to suit your needs for your remote terminal using the modular principle for customisation with search coil, pipe, separator and, optionally, True In-Process Validation.
All components of the entire system can be used in zone 22 potentially explosive environments as per the provisions of Directive 94/9/EC.
- Minimum installation height for easy integration into any application
- Cost effective control of up to four search coils via one terminal
- True In-Process Validation. This functionality guarantees correct performance testing
Datasheet
Vistus metal detection technology
- Maximum detection sensitivity
- Multi-frequency technology
- Reliable detection
True In-Process Validation
- Correct performance validation
- In the centre of the product flow
- Validate Ddring operation
Individual configuration
- Quality pipes certified to food standards
- Efficient separation systems
- Minimal installation height
Specification
| Technical Data | Vistus Freefall | |||||
|---|---|---|---|---|---|---|
| Protection Rating | IP65 (IP69K optional) | |||||
| Explosion Protection | Approved for II 1/3D c T120" -5°C ≤ Ta ≤ +40°C | |||||
| User Interface | 145 mm (5.7") touchscreen | |||||
| Relay Outputs | Total of 4 relays → Relays 1, 3 and 4 freely programmable | |||||
| Relative air humidity | Operation:< 58% at +55°C / Storage:< 30% at +70°C, 0% to 90% condensation-free | |||||
| Ambient Temperature | Operation: -10°C to +55°C | |||||
| Product Temperature | -30 to +55°C, up to +150°C with air cooling | |||||
| Data interfaces | TCP l IP-, RS232-, RS422-, CAN bus, field bus and Profibus | |||||
| Network Connection | Ethernet | |||||
