Metal Detector Vistus 高敏度通道式金檢機

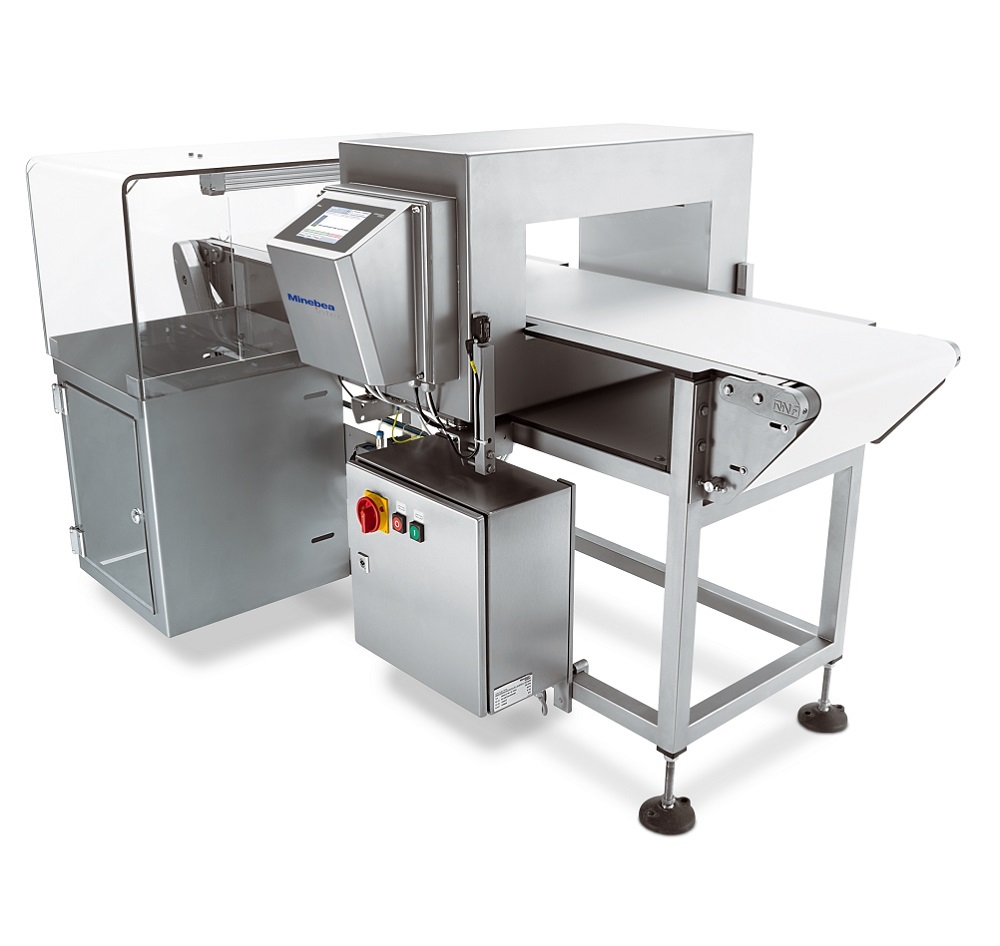

Vistus metal detectors are capable of detecting both ferrous and non-ferrous metals and are specifically designed for the food industry. They can be supplied mounted on a belt or chain conveyor, allowing an easy and fast integration into your processing or packaging line.
- Sturdy and torsion free construction made of 1.4301/AISI304 stainless steel
- High quality drives: maintenance free three-phase motor with worm gear or three phase drum motor
- Maximum detection performance through optimum vibration control and metal free zone
- Available standard coil sizes: 75 x 30 mm up to 275 x 60 mm
- Extremely compact: control unit fully integrated in detection coil
- Standard IP65 protection class, IP69K optionally available for enabling high pressure water cleaning
Brochure
Specification
| Technical Data | Vistus | |||||
|---|---|---|---|---|---|---|
| Product Speed | 2 cm/s ... 20 m/s | |||||
| Product Temperature | -30°C to +55°C | |||||
| Ambient Temperature | Operation: -10°C to +55°C / Storage: -10°C to +70°C | |||||
| Housing | 1.4301 stainless steel (AISI 304) | |||||
| Protection Rating | IP65 (optional: IP69K) | |||||
