Compression load cells from 100 kg to 5 t. Specially designed for tank and hopper weighing as well as basic dosing systems. For use in EX zones 1, 2, 20, 21, 22 and FM DIV 1.
- Easy to install and use
- Easy corner adjustment bymatched load cell outputs
- Full stainless steel construction
- Wide temperature range
- Resistant against vibrations
- Hermetically sealed, IP 68 (depth of 1.5 m for 10,000 hrs.)
- Ex-version available
- W&M approval (According to OIML R60)

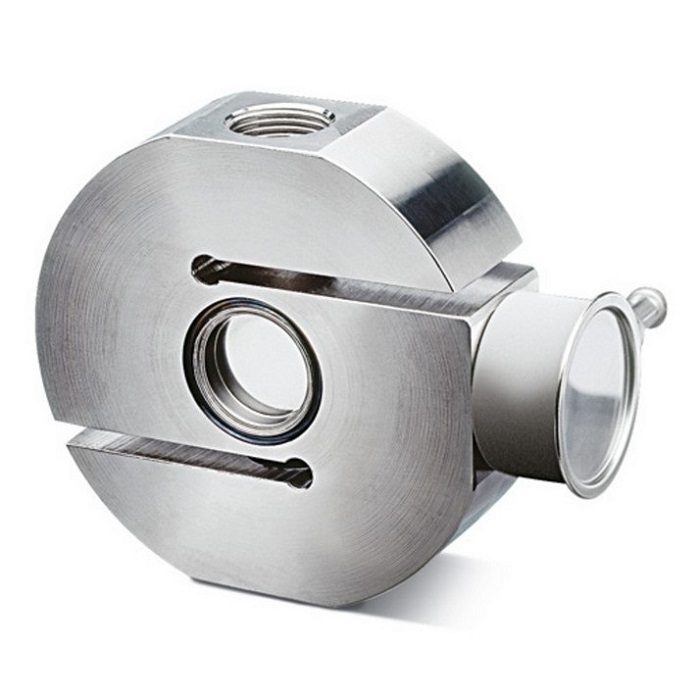

The PR 6241 range of load cells is specially designed for weighing small and medium sized process vessels and for high-precision dosing. The unique design principle, in combination with the FlexLock-installation kits, makes it possible to counterbalance movements arising from mechanical or thermal expansion or contraction of the vessel or its supporting construction.
Load cell construction
S-shape design with integrated load return. Full stainless steel construction, hermetically sealed, welded, filled with inert gas.
Load cell: 1.4542 (DIN 17440) similar to S604, S622 (B.S.), 17 - 4PH
IP 68, IEC 529 (equivalent to NEMA 6). The load cell can be submerged in water to a depth of 1.5m for 10,000 hours. Robust, flexible, screened; Sheath: TPE Thermopl. Elastomere, Colour: grey (EX: blue); Diameter: 5 mm, wires 4 x 0.35 mm2; Length: 5 m
Fixed installation: ≥ 50mm; Flexible installation: ≥ 150mm
