Compression load cells from 30 kg to 10 t. Specially designed for tank and hopper weighing as well as basic dosing systems. For use in EX zones 1, 2, 20, 21, 22 and FM DIV 1.
- Easy to install in limited space
- Easy corner adjustment by matched D1 load cell outputs
- Full stainless steel construction
- Wide temperature range
- Resistant against vibrations
- Hermetically sealed, IP68 (depth of 1.5 m for 10,000 hrs.), IP69K
- Ex-version available (500kg...10t)
- W&M approval (acc. OIML R 60)
- Integrated overload protection for up to 300kg capacity

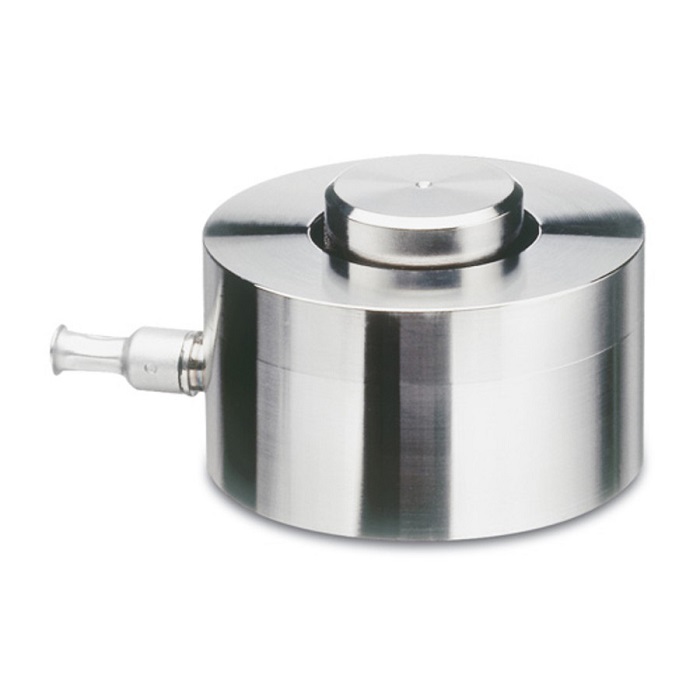

The PR 6211 range of load cells is specially designed for weighing silos, tanks and process vessels. The unique design principle facilitates a particularly compact construction and, as a result, the unit can be used even in restricted space conditions. The FlexLock installation kits counterbalance movements arising from mechanical or thermal expansion or contraction of the vessel or its supporting construction. A particular design characteristic of some models is the thin-film or “splutter” technology. This enables an operating temperature of up to 180°C to be reached. In addition, the small construction has integrated overload protection of 500 kg.
