Bending Beam Load Cell MP79 / MP79T  |檢測相關|荷重元|桶倉級荷重元

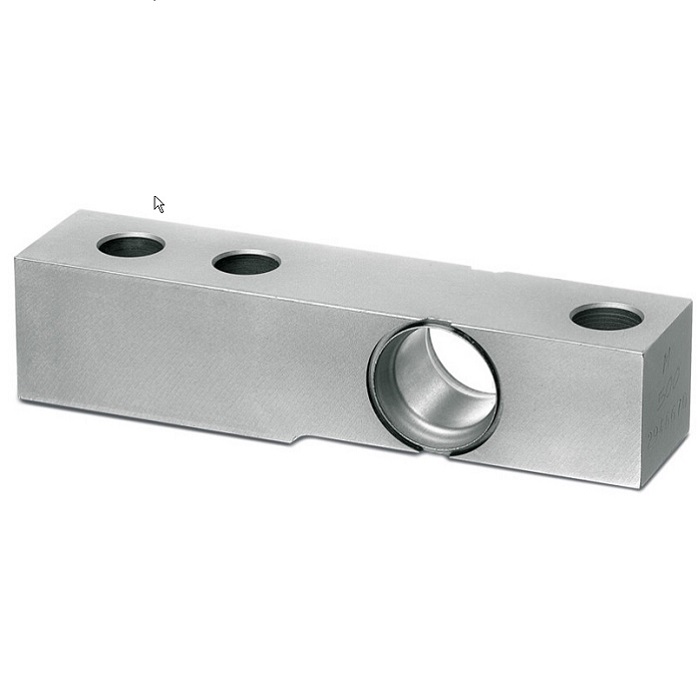

Bending Beam Load Cell MP79 / MP79T

The MP 79/79T Bending Beam Weigh Cell is made from stainless steel and is available in a load range from 227 kg to 5099 kg. This weigh cell is specially designed for use in weighing platforms and simple hopper weighing applications.


Bending Beam Load Cell MP79 / MP79T

The MP 79/79T Bending Beam Weigh Cell is made from stainless steel and is available in a load range from 227 kg to 5099 kg. This weigh cell is specially designed for use in weighing platforms and simple hopper weighing applications.
Protection class IP68, IP69K

Bending Beam Load Cell MP79 / MP79T
  • Full stainless steel construction
  • Compatible with other sources
  • Hermetically welded seal (IP68, IP69K)
  • W&M approval (acc. OIML R 60)

Datasheet

Bending Beam Load Cell MP79 / MP79T ►
Specification

Types:

  • MP 79/227 kg C3MR MP 79T/227 kg C3MR
  • MP 79/454 kg C3MR MP 79T/454 kg C3MR
  • MP 79/1134 kg C3MR MP 79T/1134 kg C3MR
  • MP 79/2268 kg C3MR MP 79T/2268 kg C3MR
  • MP 79/5099 kg C3MR MP 79T/5099 kg C3MR

Also available in an EX version
