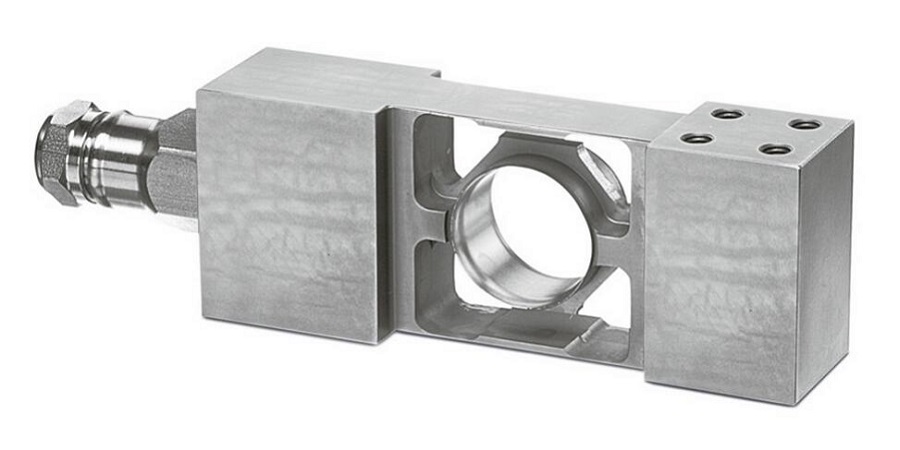

Platform Load Cell MP 55
The MP 55 Platform Weigh Cell is made completely from stainless steel, is available in a load range from 11 kg to 200 kg and platform sizes up to 600 mm x 600 mm. It is specially designed for integration into beltweighers, counting scales and checkweighers.
Protection class IP68, IP69K

- Full stainless steel construction
- Hermetically welded seal (IP68, IP69K)
- Platform size up to 600 mm x 600 mm
- Approved to OIML R60
- Ex-Version available (MP55/...E)
- High Input Impedance
- Integrated Mounting spacer
Datasheet
Specification
Types:
- MP 55/ 11kg C3MR+
- MP 55/ 22kg C3MR+
- MP 55/ 50kg C3MR+
- MP 55/100kg C3MR+
- MP 55/200kg C3MR+
Certificate of conformity Features:
Feature: II 1G and 1D EEx ia IIC T6|T5|T4 130°C, II 1D IP65 T 130°C; Reg. Number: KEMA 04ATEX 1253x
Order number for ATEX load cells:
9408 6.. .....e.g. MP55/10kg C3MR E = 9408 655 07010
