線上取樣分析系統


The Seg-Flow® Automated On-line Sampling System provides multiple bioprocess monitoring and control solutions for improving process performance.




Seg-Flow® Automated On-line Sampling System 線上取樣分析系統

Seg-Flow<sup>®</sup> Automated On-line Sampling System

The Seg-Flow® Automated On-line Sampling System provides multiple bioprocess monitoring and control solutions for improving process performance. The Seg-Flow system's patented Segmented On-line Sampling™ technology allows rapid and accurate sampling for 8 vessels or process streams and sample delivery to 4 analyzers and/or fraction collectors. Several feed control options are available with the Seg-Flow system, which can control 2 pumps per vessel. Existing off-line and at-line analytics are seamlessly integrated into a multi-functional on-line PAT tool through the Seg-Flow system’s communication interface and FlowWeb™ control software. The FlowWeb software simultaneously acquires all integrated instrument data and can export the data to any OPC-enabled SCADA for enhanced process monitoring and control.

產品特點 / Features

Sampling Solutions

  • Rapid and accurate sampling
  • Sample from 1-8 vessels/process streams
  • Deliver samples to 4 analyzers/fraction collectors
  • Withdraw cell-free or cell-containing samples
  • On-line monitoring of nutrients, metabolites & cell growth
  • Sample line is cleaned and/or sterilized after every sample

Instrument Integrations

  • Agilent® Infinity 1200 Series HPLC
  • Cedex Bio HT
  • Cedex HiRes Cell Analyzer
  • Mettler-Toledo Balances
  • Nova® BioProfile® Flex II, Flex, Basic, 100, 300, & 400 analyzers
  • Vi-CELL® XR Cell Analyzer
  • Waters Acquity UPLC
  • YSI® 2700, 2900, 2950, & 7100 Biochemistry Analyzers

Feed Control Options

  • Control 2 feed pumps per vessel
  • Setpoint control, gravimetric feed control
  • Other feed algorithms can be programmed
  • Pump interfaces include: Watson-Marlow, Cole-Parmer®, MasterFlex®, SciLog® ACCU Digital, & Ivek
  • Other pump interfaces available upon request

SCADA Integrations

  • Sartorius BioPAT® MFCS
  • DASGIP DASware
  • New Brunswick BioCommand®
  • Broadley-James BioNet®
  • Emerson Delta V
  • Other devices and SCADA available upon request

Communication Interfaces

  • TCP/IP
  • Serial – RS-232
  • Analog I/O
  • OPC

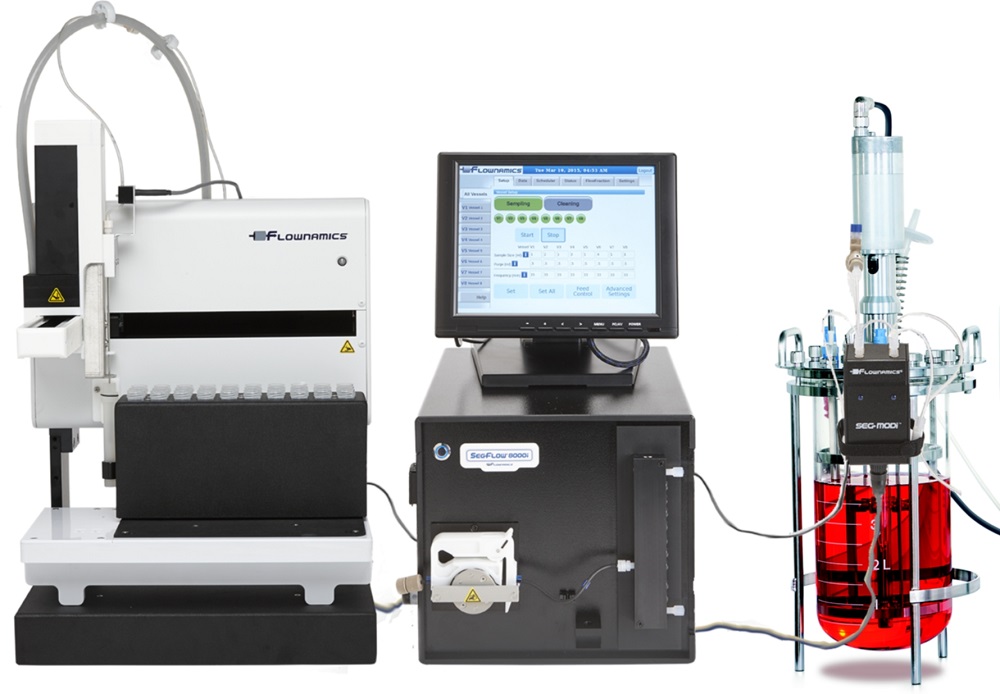

Seg-Flow® On-line Sampling System

Your Automated On-Line Bioprocess Sampling Solutions


產品型號 / Model

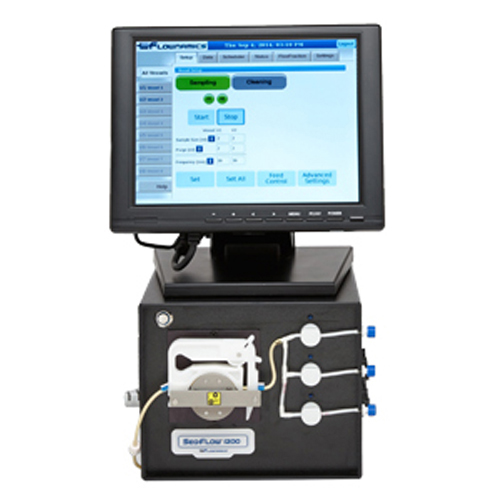

Seg-Flow 1200
Seg-Flow 1200

Economical
Single-use fluid path
Sampling for 1-2 reactors
10” W x 7” H x 10” D
(25.4 cm x 17.8 cm x 25.0 cm)

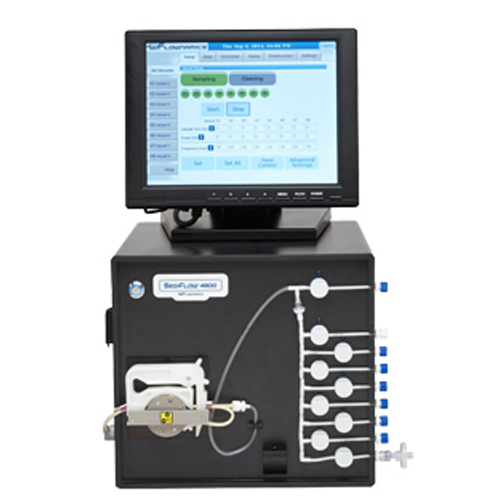

Seg-Flow 4800
Seg-Flow 4800

Single-use fluid path
Sampling for up to 8 reactors
11”W x 10 ¼”H x 14”D
(27.9 cm x 26.0 cm x 35.6 cm)

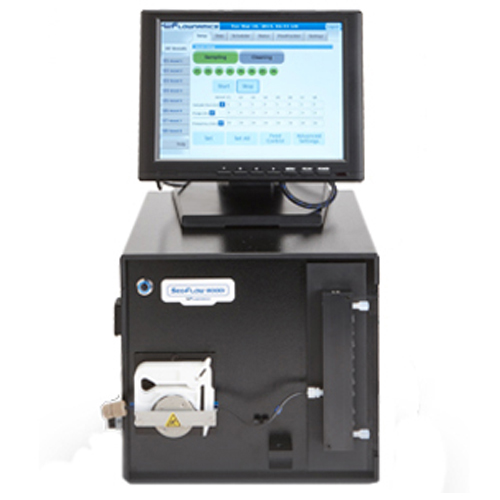

Seg-Flow 8000i
Seg-Flow 8000i

Chemically inert fluid path
Sampling for up to 8 reactors
11”W x 10 ¼”H x 14”D
(27.9 cm x 26.0 cm x 35.6 cm)

更多產品資訊與規格,請洽免費服務專線0800-588990。 Free!!
