Radio-isotope 放射性同位素抽風櫃
用途分析
- 對人員進行保護，通過DIN 25466 測試
- 如果增加對輻射防護的需求，則在操作實驗時抽氣放射性物質
- 防止滲入、汙染和外部輻射照射
- 排出內部產生的煙霧、氣溶膠和顆粒物質，防止有毒有害汙染物滲入到實驗室
- 預防櫃內有害氣體濃度過高以及可能形成的爆炸性危險
- 防止化學液體濺射傷害
- 預防懸浮顆粒或微粒從櫃內滲出傷害
- 依照DIN 25466標準建造的抽風櫃，通常不適用於微生物實驗
- 不適合開放式分解反應

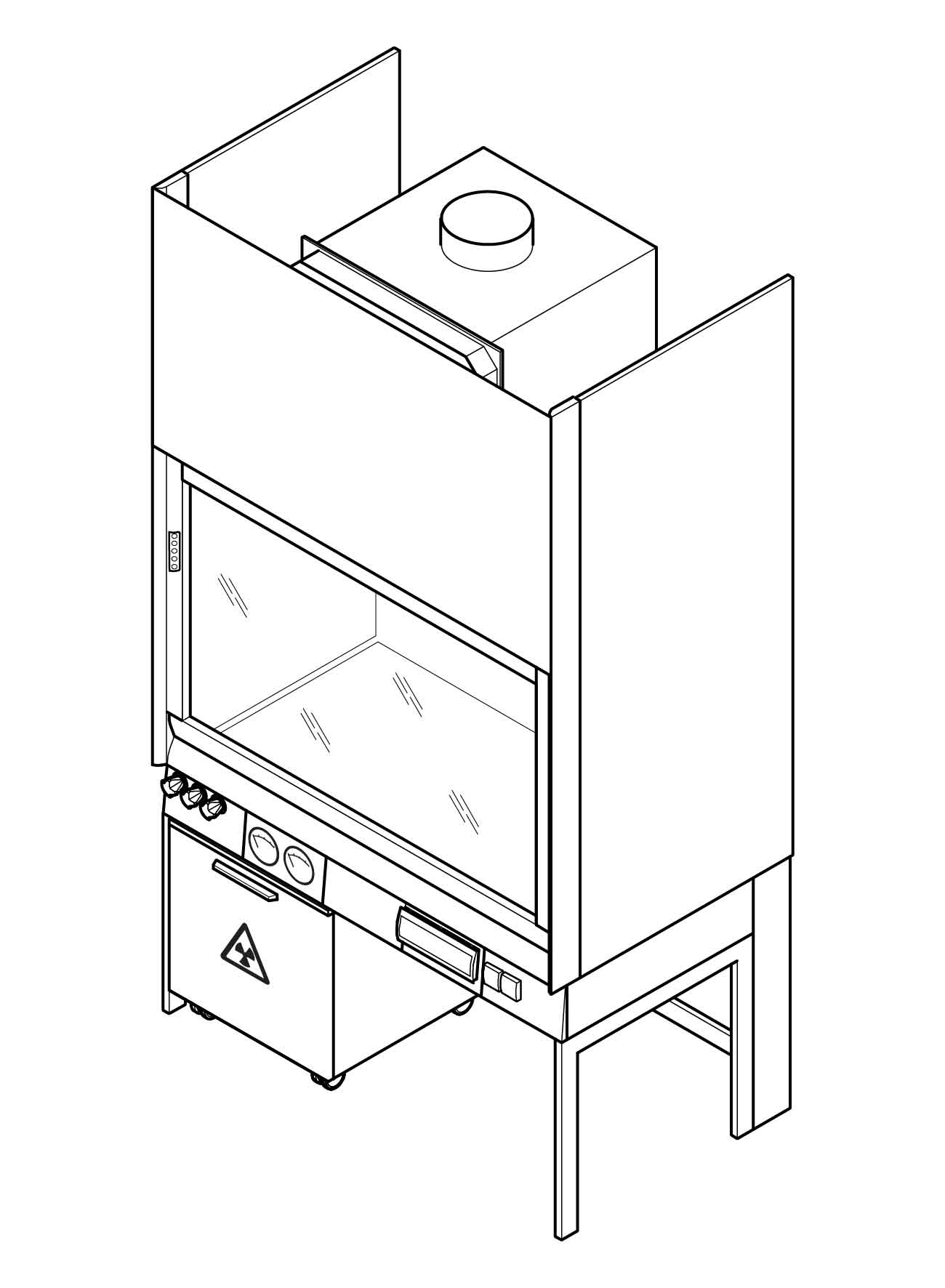

尺寸圖
技術參數
| Dimensions | 1200 | 1500 |
|---|---|---|
| Width [mm] | 1200 | 1500 |
| Depth [mm] | 900 | |
| Height [mm] | 2700 | |
| Clear width, intern al workspace [mm] | 1150 | 1450 |
| Clear heigl1t, intern al workspace [mm] | 1053 | |
| Working height [mm ] | 900 | |
| Filter housing, width x depth x height [mm] | 820 X 775 X 674 | |
| Weight | 1200 | 1500 |
|---|---|---|
| Without installations and fume-scrubber [kg] | Approx. 250 | Approx. 300 |
| Filter housing [kg] | 90 | |
| Material/surface | ||
|---|---|---|
| Internal lining including worktop | Polypropylene | |
| Stainless steel | ||
| Ventilation technology | 1200 | 1500 |
|---|---|---|
| Minimum air exchange rate [m3/h](1) | 480 | 600 |
| Pressure loss, filter [Pa](2) | 25/200 | 30/235 |
| Pressure loss, particle filter [Pa](2) | 50/300 | 60/350 |
| Pressure loss, active charcoal filter [Pa](2) | 25/25 | 30/30 |
| Function display | FAZ | |
| Airflow damper, constant | Airflow-Controller AC | |
| Airflow damper, variable | Airflow-Controller AC | |
| Connection height [mm ] for FAZ and AC with extract manifold 0 2 50 mm | 305 0 | |
| Underbench exhaust | As an option, depending on requirements and regulations | |
註解說明:
- (1)所有排風量指標均為面窗開啟500 mm高度時（根據EN14175）測試的資料，跟蹤氣體最大值為德國標準（BG RCI ）推薦的數值。
- (2))壓力損失值是指清潔/污染的狀態。
抽風櫃氣流閥的最大進氣壓力值不應超過600 Pa。
標示的最低換氣率根據EN14175-3規定的測試條件而定。設計通風系統大小時，必須滿足此最低換氣率。
若現場使用了排風監測系統或者氣流閥，排風量要求會有所不同。運行條件必須徵得Waldner同意。
對於帶有過濾器的通風櫃，必須將集成過濾器級的壓力損失加到通風櫃的壓力損失上。
| Filter (filter in the filter cabinet or on the fume cupboard roof) | |
|---|---|
| Dimensions [mm) | 610 x 610 x 46 (+ 8 mm seal) |
| Pressure loss [Pa) at 1900 m3/h | 110 |
| Design characteristics | Filter element (fine particle filter); filter class EN 779: F7 Frame made of multilayer board with grip and type label on the 610-mm side; PU seal on the dust-laden air side |
| Use | Fine particle filter for particle adsorption, e.g.: Oil smoke and agglomerated soot, tobacco smoke, metal oxide smoke Average efficiency (Em) 80-90% |
| Particle filter (filter in the filter cabinet or on the fume cupboard roof) | |
|---|---|
| Dimensions [mm) | 610x 610 x 292 (+ 7 mm seal) |
| Pressure loss [Pa) at 2435 m3/h | 250 |
| Design characteristics | Particle filter element type: Hepa Hl 3; efficiency: MPPS Frame made of multilayer board wit h grip and type label on the 610-m m side; PU tight seat sea l on the clean air side; filter medium flush on the clean air side |
| Use | Particle filter for the adsorption of particles up to Hl 3; particle adsorption 99.95 %; transmittance 0.05% |
| Active charcoal filter (filter in the filter cabinet) | |
|---|---|
| Dimensions [mm) | 610x 610 x 292 (+ 7 mm seal) |
| Pressure loss [Pa) at 600 m3/h | 9 |
| Design characteristics | Activated charcoal cell 7C for 16 x activated charcoal cart ridges Frame galvanised sheet metal; 2 x U hand le and type plate on the 610- mm side; PU tight seat seal on the clean air side |
| Use | Standard impregnation: for all common radioactive materials, radioactive iodine compound s, radioactive iodomethane, radioactive gases. (A filter with filter class F7 in acc. with EN 779 is recommended.) |
