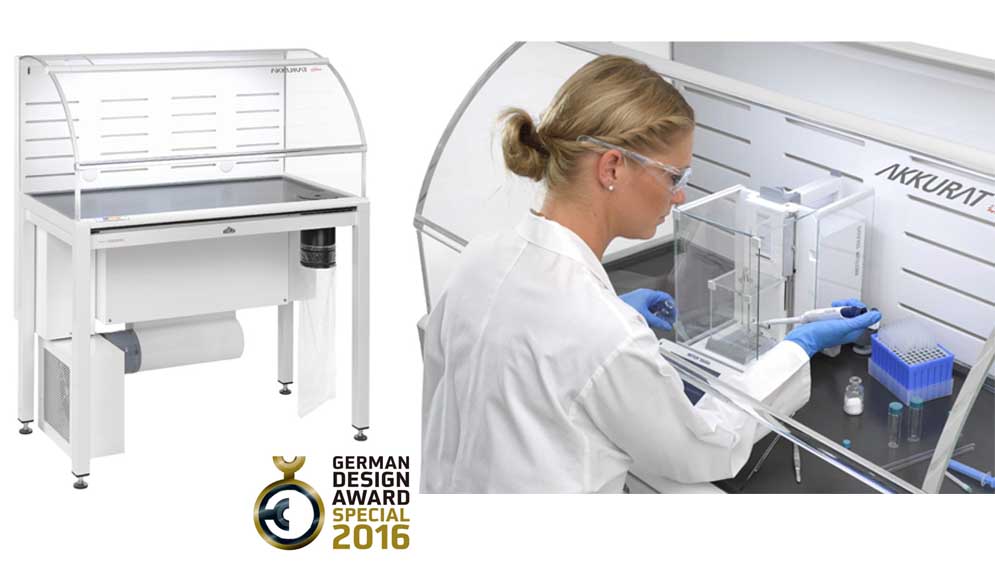

AKKURAT Balance Enclosure 安全秤量桌
特色
- 櫃體本身符合人體工學和集中功能的設計符合最高質量和安全標準 - 2016年德國設計大獎。
- 櫃體本身符合人體工學和集中功能的設計符合最高質量和安全標準 - 2016年德國設計大獎。
- 減震工作台，並能使用於高精度的微量平秤高達0,000001克。
- 前台邊緣的擾流板翼片設計，防止空氣從內部回流，並可作扶手來防止工作檯面的振動。
- 背板式空氣吸入口&特殊流動技術設計:均勻將有害物質由背板吸入捕捉汙染源，以防止危險物質釋放，最大限度地保護操作人員。
- 職業暴露濃度小於10 µg / m³以及防護效果達1 ng/ m³，並有GS安全標誌，安全等級高。
- 智能控制面板& LED省電變色燈條: 作業時指尖簡易操作並可調整色調燈光。
- 前屏罩可開啟便於放置天秤等儀器，並能輕碰後緩慢關閉。
- 內建cable孔: 可集中收納電線，減少空間雜亂，亦可連接外插座，空間內盡可能減少用電危險因素。
- 桌面配置處理口，便於直接在內部工作空間處理掉廢棄物。
- 去靜電技術(選配) :避免靜電所產生摩擦火花等，降低任何影響量測的可能。亦可防止灰塵狀物質粘附在內部工作空間中的表面，降低這些物質附著於實驗室人員衣服上傳播的風險。(工作台前緣的空氣通過電離電極，然後電離空氣流過內部工作空間表面，從而將其排出)。
- 過濾器殼體,振動分離及風扇位置設計可以確保最大腿部空間。
技術參數
| Dimensions | 1200 | 1500 |
|---|---|---|
| Width [mm] | 1200 | 1500 |
| Depth [mm] | 650 | |
| Height [mm] | 1450 | |
| Clear width, internal space [mm] | 1150 | 1450 |
| Effective depth of internal space [mm] | 575 | |
| Clear internal height of internal space [mm] | 530 | |
| Working height [mm] | 900 | |
| Weight | 1200 | 1500 |
|---|---|---|
| Supporting construction | Steel support frame, fully welded with height-adjustable feet | |
| Desktop | Technical ceramic with raised edge on all sides | |
| Upper part | Fully plexiglass upper part Upwardly-hinged front screen LED lighting integrated into the hinge for the front screen Rear wall with integral exhaust system and 2 cable through-puts |
|
| Rear wall | Double-walled, PP white, UV-resistant | |
| Ventilation | Fan in separate housing with frequency converter for continuously variable speed control | |
| Filter | HEPA H14 particle filter as per DIN EN 1822 contamination-free filter change using the bag exchange method |
|
| Handling | |
|---|---|
| Working substances | Powdered or dusty substances (e.g active ingredients for drug production) |
| Equipment | Laboratory balances from all popular manufacturers |
| Ventilation technology | 1200 | 1500 |
|---|---|---|
| Extract air monitoring | Air volume measurement using the measuring equipment of the fume cupboard function display | |
| Face velocity | 0,2 m/s (+/-10%) at 140 m³/h optional 0,3 m/s |
0,2 m/s (+/-10%) at 180 m³/hoptional 0,3 m/s |
| Noise level | 54 dB | |
| Standard filtering | Camfil: HEPA / ULPA filter H14 according to DIN EN 1822 | |
| Voltage | 230 V | |
| Power consumption | 250 V | |
| Ventilation connection Ø [mm] | 160 | |
| Air exchange rate [m³/h] | 140 | |
| Pressure loss [PA] | 80 | |
| Options | ||
|---|---|---|
| Ionisation | The separately switched ionising system, which is fully integrated in the balance enclosure, neutralises the non-conductive surfaces in the interior workspace of the balance enclosure and diverts electrostatic charges from the samples. The capacitively working high-voltage electrodes in the inflow area of the front opening are designed to be touch-safe. | |
