Dyxim-FB 包裝產品X-ray檢測機


When increasing product size and material density, high energy systems are required to ensure a reliable detection of foreign bodies. This is what the Dyxim FB series offers.




Dyxim-FB 包裝產品X-ray檢測機

When increasing product size and material density, high energy systems are required to ensure a reliable detection of foreign bodies. This is what the Dyxim FB series offers.

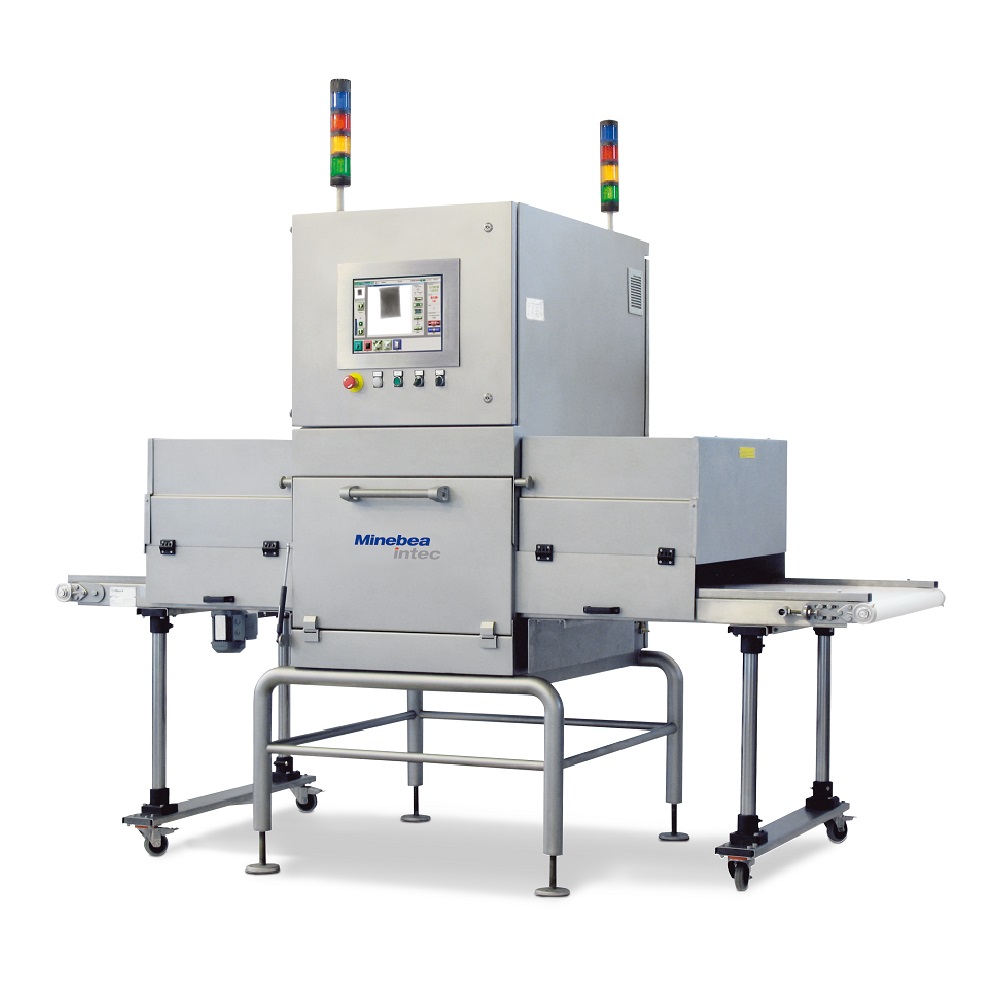

X-ray Dyxim-FB
  • For inspecting large packages such as sacks and boxes up to a size of 700 mm x 360 mm containing dry or liquid food products
  • While identifying product contamination, the Dyxim-FB series can simultaneously perform in-line quality checks, including measuring mass, counting components and identifying missing or damaged products
Specification
Technical Data FB 60 FB 80/120 FB 160

X-ray Power ≤ 90 kV; ≤ 5 mA ≤ 90 kV; ≤ 5 mA ≤ 90 kV; ≤ 10 mA
Detection Resolution Linear Detector, 0.4mm Linear Detector, 0.4mm Linear Detector, 0.8mm
Belt Speed Range Up to 60 m/min Up to 70 m/min Up to 70 m/min
Interface 15" touchscreen
Protection Rating IP 54
Conveyor Height 860 - 1,020 mm 860 - 1,010 mm 860 - 1,010 mm
