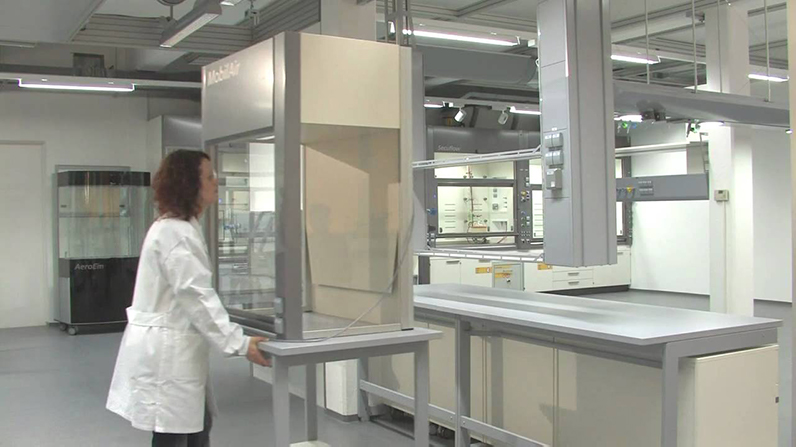

MobilAir 移動式抽風罩


MobilAir 移動式抽風罩




MobilAir 移動式抽風罩

Waldner walk

用途分析

  • 控器循環模式(air-circulating mode)、抽氣操作模式(extract air operation)兩款
  • 可在需要時使用(僅限空氣循環模式)
  • 控制單元位於外部
  • 不適用於分解反應
  • 不適合取代符合EN14175標準的抽風櫃
  • 符合DIN EN ISO 9001、DIN EN ISO 14001、ProdSG -產品安全法案、TRGS 526 -有害物質技術規定等認證

技術參數

Dimensions
Width [mm] 900
Depth [mm] 600
Height with sash closed/open [mm] 1215/1620
Access width [mm] 730
Clear width, internal workspace [mm] 503
Clear internal height up to lamp [mm] 846
Clear internal height up to ceiling [mm] 935

Weight
MobilAir for extract air operation [kg] Approx. 70
MobilAir for air-circulating mode incl. filter [kg] Approx. 82

Design characteristics
Air-circulating mode With ventilator and filter
Extract air operation Extract air spigot connected to on-site extract air system
Lighting Dazzle-free, can be switched from the outside
Sash Moves vertically
Material lock Possible on the left and/or right side of the fume cupboard

Electrics
Electrical supply 2 external sockets
Total power of sockets [W] 1000
Connection voltage [V AC] 230
Lighting [W] 13
Ventilator power [W] 115

Ventilation technology
Minimum air exchange rate [m³/h] 300
Function display FAZ as an option
Connection height [mm] Extract air spigot Ø 125 mm 1137
Sash Moves vertically
Material lock Possible on the left and/or right side of the fume cupboard

Material
Side panel design, sash Plexiglas

Filter type „A“ no.5, gas filter
Dimensions [mm] 610 x 305 x 150 (+ 8 mm seal)
Pressure loss [Pa] at 300 m³/h 130
Design characteristics Gas filter cell with 5 layers of activated carbon mat, type „A“; MDF frame; with white- painted grid on both sides, with grip and type label on the 610-mm-side, PU seal on the dust-laden air side
Use Separable substances: organic gases and vapours (e.g. solvents, petrol fumes, toluol, benzol, kerosine, odours, hydrocarbons with mass weights 30 and higher), cold, non- boiling (VOC, high-boiling substances)

Filter type „BEP“, gas and particle filter
Dimensions [mm] 610 x 305 x 150 (+ 8 mm seal)
Pressure loss [Pa] at 300 m³/h 240
Design characteristics Combination filter Hepa H13 with activated carbon mat and particle filter, type „BEP; MDF frame, with white-painted grid on both sides, with grip and type label on the 610-mm-side, PU seal on the dust-laden air side
Sash Moves vertically
Use Separable substances: inorganic gases and vapours (e.g. chlorine, hydrosulphides, sulphur dioxide, hydrogen chlorides, cold and heated). Molecules and particle separation 99.95 % MPPS

Filter type „P“, particle filter cell
Dimensions [mm] 610 x 305 x 150 (+ 8 mm seal)
Pressure loss [Pa] at 300 m³/h 150
Design characteristics Particle filter, type „P“, Hepa H13, Midilar MDSA; MDF frame, with white-painted grid on both sides, with grip and type label on the 610-mm-side, fold height 45 mm, PU seal on the dust-laden air side, filter medium flush on the dust-laden air side
Use Separable substances: Particle separation 99.95 % MPPS, Hepa H13
