取樣探頭  |生技/製藥上游製程相關|上游製程週邊產品

取樣探頭


The FISP® is a sampling probe capable of withdrawing sterile, cell-free samples from fermentors and bioreactors. It allows direct on-line sample transfer to a variety of analyzers as well as collection for off-line analysis.




FISP® Sampling Probe 取樣探頭
FISP<sup>®</sup> Probe

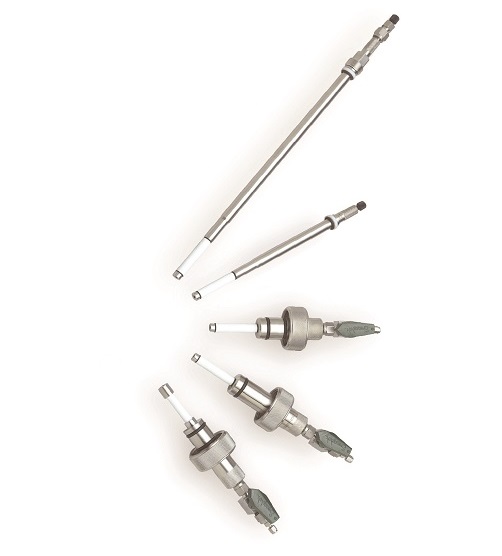

Flownamics® has developed the FISP®, which is a sampling probe capable of withdrawing sterile, cell-free samples from fermentors and bioreactors. FISP® allows direct on-line sample transfer to a variety of analyzers, such as biochemistry and HPLC systems, as well as collection for off-line analysis. FISP® is a small, tube-shaped, sterilizable 316 stainless steel carrier which is surrounded by a tubular, micro-porous membrane.They are available for 12, 19 and 25 mm ports for use in laboratory, pilot or industrial scale vessels. FISP® has been and continues to be widely utilized in the fermentation and cell culture fields since it’s introduction to the market in 1996.


FISP® Sampling Probe

Withdraws Sterile, Cell-Free Samples from Fermenters, Bioreactors or Other Vessel Types

操作方式 / Operation

FISP Operation

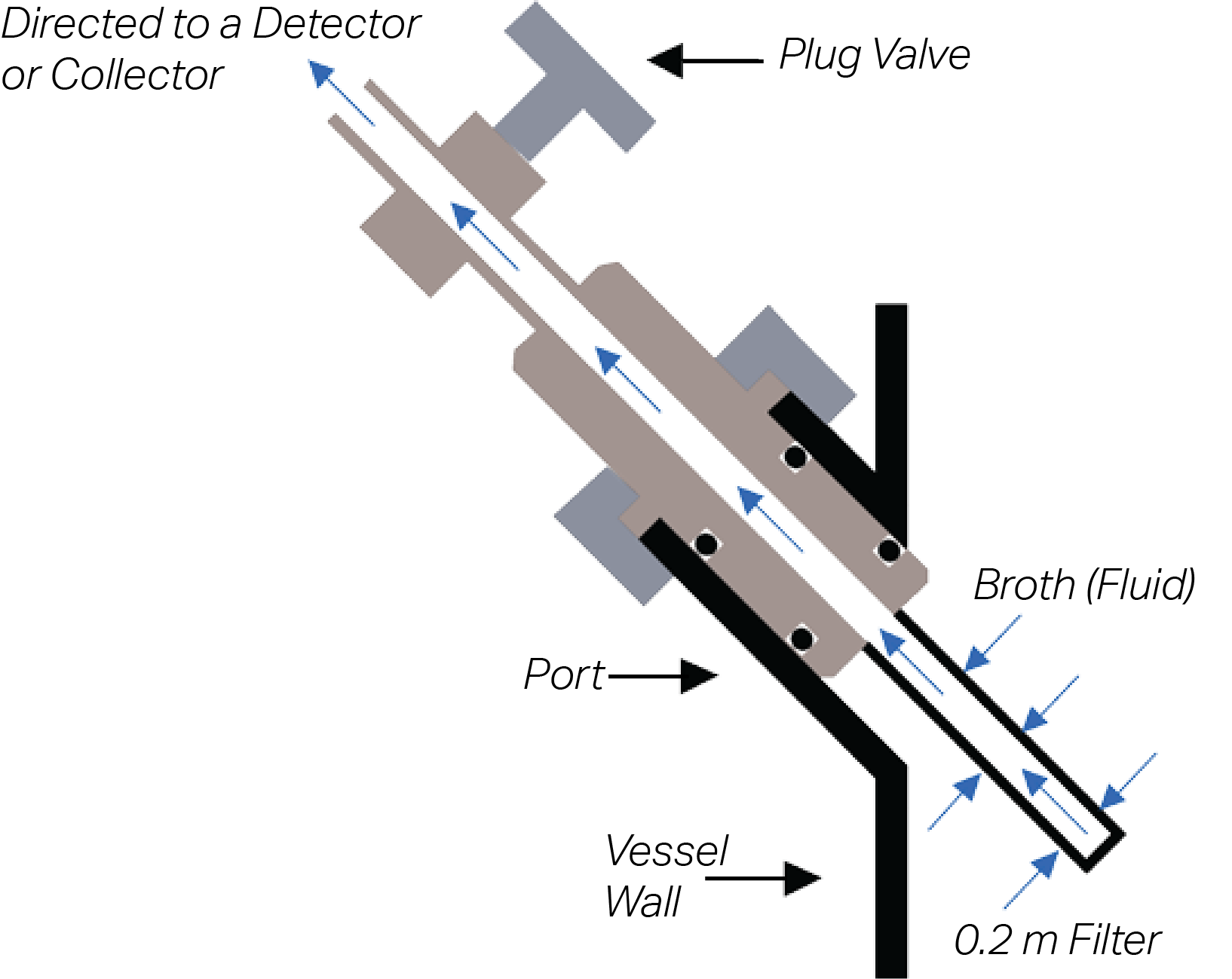

The FISP is inserted into a side or top port of the vessel. It is immersed into the fermentation broth or culture media and sterilized in-situ. A peristaltic pump (or the vessel’s own hydrostatic pressure) withdraws a sample through the tubular membrane and into the probe’s stainless steel network of grooves. The sample flows through the network of grooves into a central channel where the cell-free sample can be directed to an on-line analyzer, fraction collector, or sample container. Fluid flow rate is dependent on the viscosity of the media.

產品特點 / Features

  • Biochemistry analyzers
  • Fraction collectors, Autosamplers
  • Flow Injection Analysis (FIA) systems
  • HPLC systems
  • Biosensors
  • Methanol analyzers

  • Sterile, cell-free sampling for on-line or off-line analysis
  • Autoclave, SIP, & CIP compatible
  • Risk free sampling with 0.2 micron filter (sterile barrier)
  • Fits small laboratory to large full-scale production vessels
  • Collect and store samples for off-line analysis
  • Directly interfaces the fermentor or bioreactor with:
  • Minimal dead volume for consistent and accurate sampling, which reduces flush time
  • Withstands the temperatures, pressures, viscosities, shear forces, and chemicals typical of fermentation environments
  • Use with aerobic or anaerobic bacteria, yeast, fungi, algae, insect, and mammalian cell cultures
  • Easy to use and maintain; no operator training required
  • Can be used for submerged feeding/sterile media addition
  • Interfaces with Flownamics Seg-Flow® Sampling System (additional information available)

產品系列 / Series

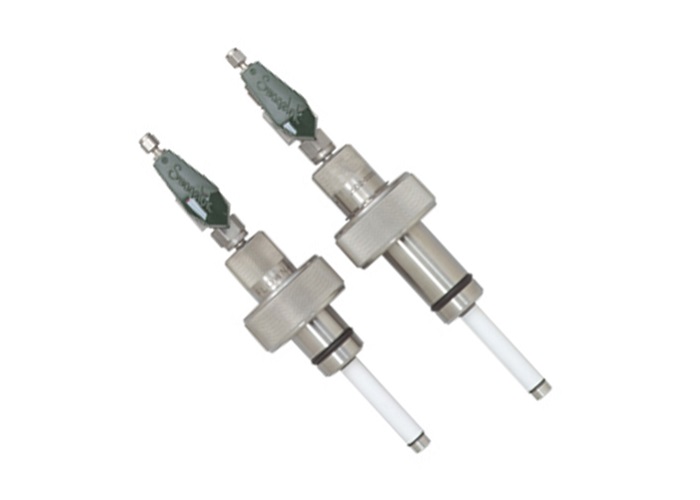

FISP D-Series
D-Series

Available For 25mm Ports: Standard & Safety Fits Into the Fermenter / Bioreactor Side Port Dead Volume: Approximately 0.24 to 0.44ml Immersion Depths: 90 & 115mm

D-Series Features
  • Available For 25mm Ports: Standard & Safety
  • Fits Into the Fermenter / Bioreactor Side Port
  • Dead Volume: Approximately 0.24 to 0.44ml
  • Immersion Depths: 90 & 115mm

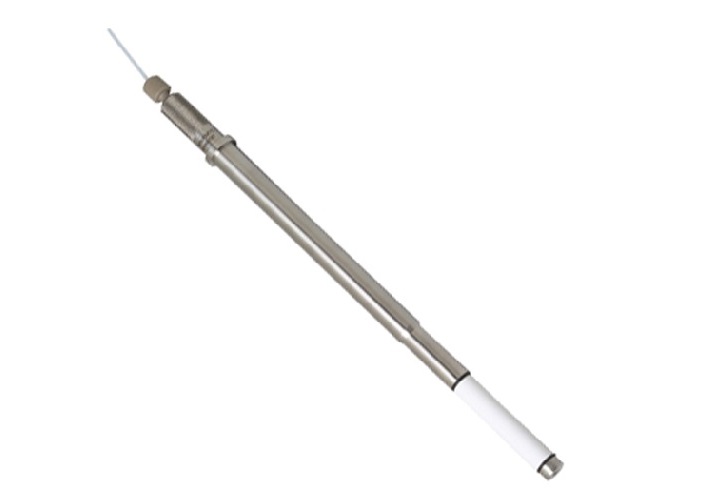

FISP F-Series
F-Series

Available For 12 & 19mm Ports Fits Into the Fermenter / Bioreactor Top Port Dead Volume: Approximately 0.24 to 0.44ml Immersion Depths: 120, 200, 310, & 410mm

F-Series Features
  • Used with disposable SUB's
  • FISP Model P-F12-200-02
  • Available For 12 & 19mm Ports
  • Fits Into the Fermenter / Bioreactor Top Port
  • Dead Volume: Approximately 0.24 to 0.44ml
  • Immersion Depths: 120, 200, 310, & 410mm
  • Compatible with a kleenpak™ connectors from Pall Corp.
