AT-Closed Vial® 無菌雷射密封瓶


The the ready-to-fill AT-Closed Vial® Technology is an aseptic fill & finish solution aiming to minimize the contamination risks while simplifying the process.




AT-Closed Vial® 無菌雷射密封瓶
應用領域 / Fields of use
Biological

Vaccines
mAbs
RNA/DNA-based products

Low leachable profile, twice less particles then in glass vial

Potent

Cytotoxics
Radiopharmaceuticals
Nanomedicines

Unbreakable container, always closed to avoid contamination

Cryostored

Cell therapy
Gene therapy
Other low T° storage products

Container Closure Integrity even in liquid nitrogen

技術概念 / Concept

The AT-Closed Vial® Technology is based on the concept of the ready-to-fill Closed Vial, whereby polymer vials are provided:

  • clean (molded in ISO 5 clean room)
  • closed (stopper in place and secured)
  • sterilized (gamma-irradiated)

"Item-level isolator"

AT-Closed Vial® ensures better sterility assurance, lower particle presence and uncompromised container closure integrity, even during cryogenic storage.

步驟說明 / Process

ready-to-fill AT-Closed Vials®

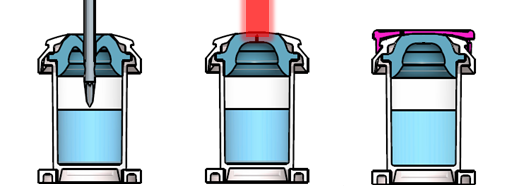

The overall filling process of the ready-to-fill AT-Closed Vials® is made of very few steps:

  1. Filling of the vial with a needle puncturing the elastomeric stopper.
  2. Immediate laser re-sealing to restore the closure integrity of the filled vial.
  3. Capping with a tight snap-fit cap protecting the piercing area.
材質 / Materialst

Materials selected for the product contact parts meet USP and EP requirements for pharmaceutical primary container:

  • COC (Cyclo-Olefin Co-polymer) for vial body, known for shock-resistance, barrier properties and transparency
  • TPE (Thermo Plastic Elastomer) for stopper, a proprietary material allowing specific processing

both having excellent leachable profile.

The fully automated vial manufacturing process ensures clean conditions: vial and stopper are molded in Grade A/ISO 5 and immediately assembled by robots, minimizing particle content compared to other types of primary containers. AT-Closed Vials® are then packed and sterilized by gamma irradiation, being supplied as Ready-to-Fill containers.

ready-to-fill AT-Closed Vials®
規格 / Specification

AT-Closed Vial® 1 ml 2 ml 6 ml 10 ml 20 ml 50 ml
Specific solutions for UV-, O2-sensitive, lyophilized products can be offered.
Height (in mm, +1mm if capped) 33.10 33.10 39.30 49.80 61.20 84.90
External vial diameter (in mm) 18.30 22.30 25.00 25.00 30.00 36.00
Maximum volume filled (in ml) 1.35 2.25 7.60 11.70 21.80 52.10

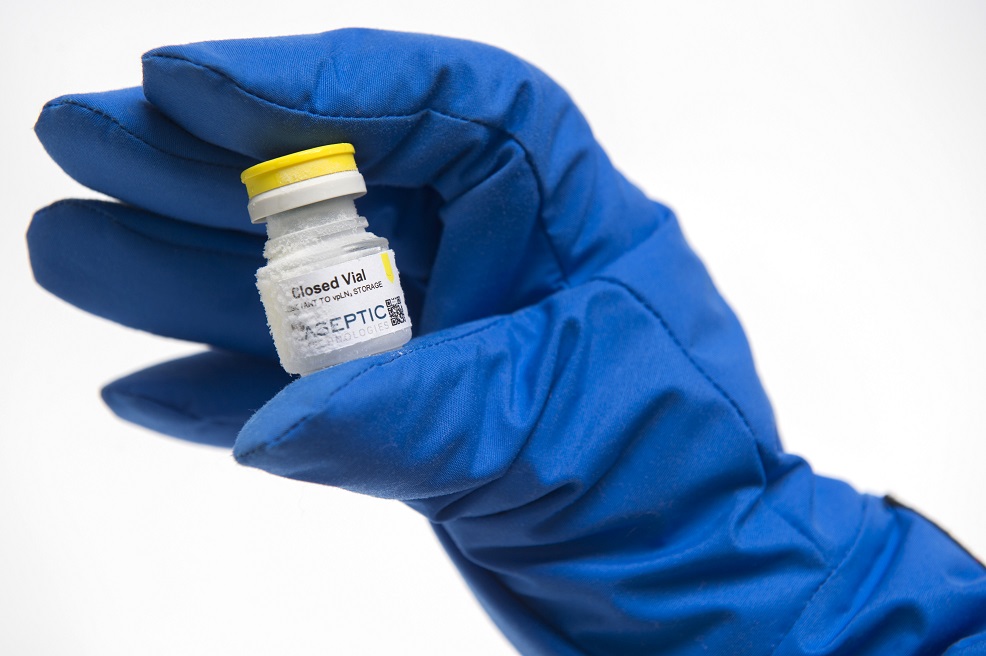

Cryogenic storage can be cryopreserved while keeping Container Closure Integrity
Colored caps are available in different colors for product differentiation
