Dymond 包裝產品X-ray檢測機


The Dymond Series of X-ray inspection systems is extremely versatile. Featuring 4 models it is able to cover the majority of applications for inspecting packaged products. With belt widths up to 800 mm it is ideal for multi-lane......




Dymond 包裝產品X-ray檢測機

The Dymond Series of X-ray inspection systems is extremely versatile. Featuring 4 models it is able to cover the majority of applications for inspecting packaged products. With belt widths up to 800 mm it is ideal for multi-lane applications of up to 8 traces.

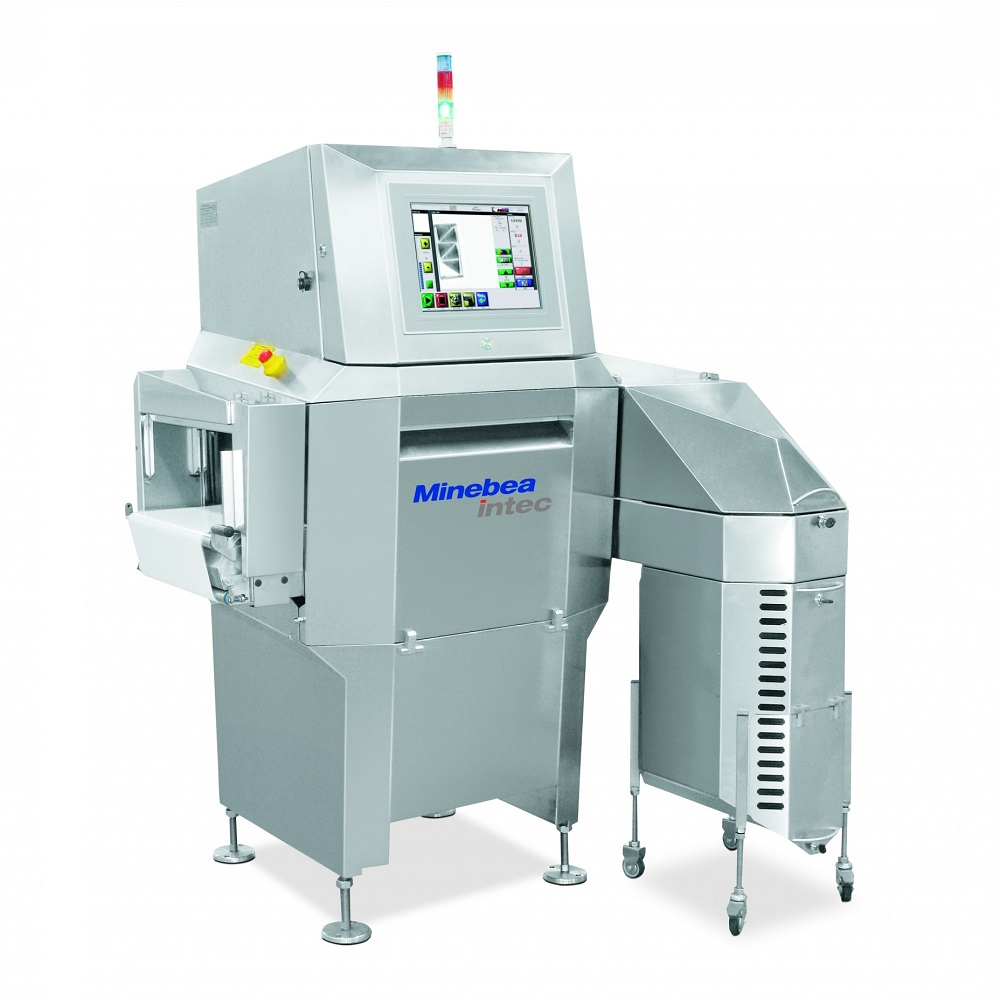

X-ray Dymond
  • Hygienic design, following EHEDG principles featuring sloped surfaces and curved edges allowing easy inspection and cleaning, resulting in considerable time and cost savings
  • A wide range of standard possibilities for ensuring product integrity and quality including checking completeness, determining product mass and determining compartment mass
  • Covering belt widths from 200 mm up to 800 mm
  • 15" color touchscreen display
  • Combining high detection sensitivity with low power consumption
Specification
Technical Data Dymond 40 Dymond 80 Dymond 120 Dymond 160

X-ray power 70 kV; 1.4 mA 70 kV; 1.2 mA | 80 kV; 2 mA (Optional) 80 kV; 2mA 90 kV; 3.5 mA
Detector resolution 0.4 mm 0.8 mm (standard) 0.4 mm (optional) 0.8 mm 0.8 mm
Belt Speed Range 10 to 49 m/min (standard) | Up to 73 m/min (optional)
Approval CE, UL | CSA
Human Interface 15" touchscreen
Radiation Safety FDA CFR 21 part 1020,40
Protection Rating IP34 (standard) | IP65 Optional | IP69K on request
Conveyor Height 800 – 999 mm
