其他型式抽風設備  |實驗室/建廠規劃&基礎設備|智慧型化學排煙櫃|所有產品

其他型式抽風設備


Extraction arm 萬向抽氣罩
Underbench exhaust 實驗桌抽氣設備
Snorkel hood 抽氣罩
Extraction hood 固定式抽氣罩

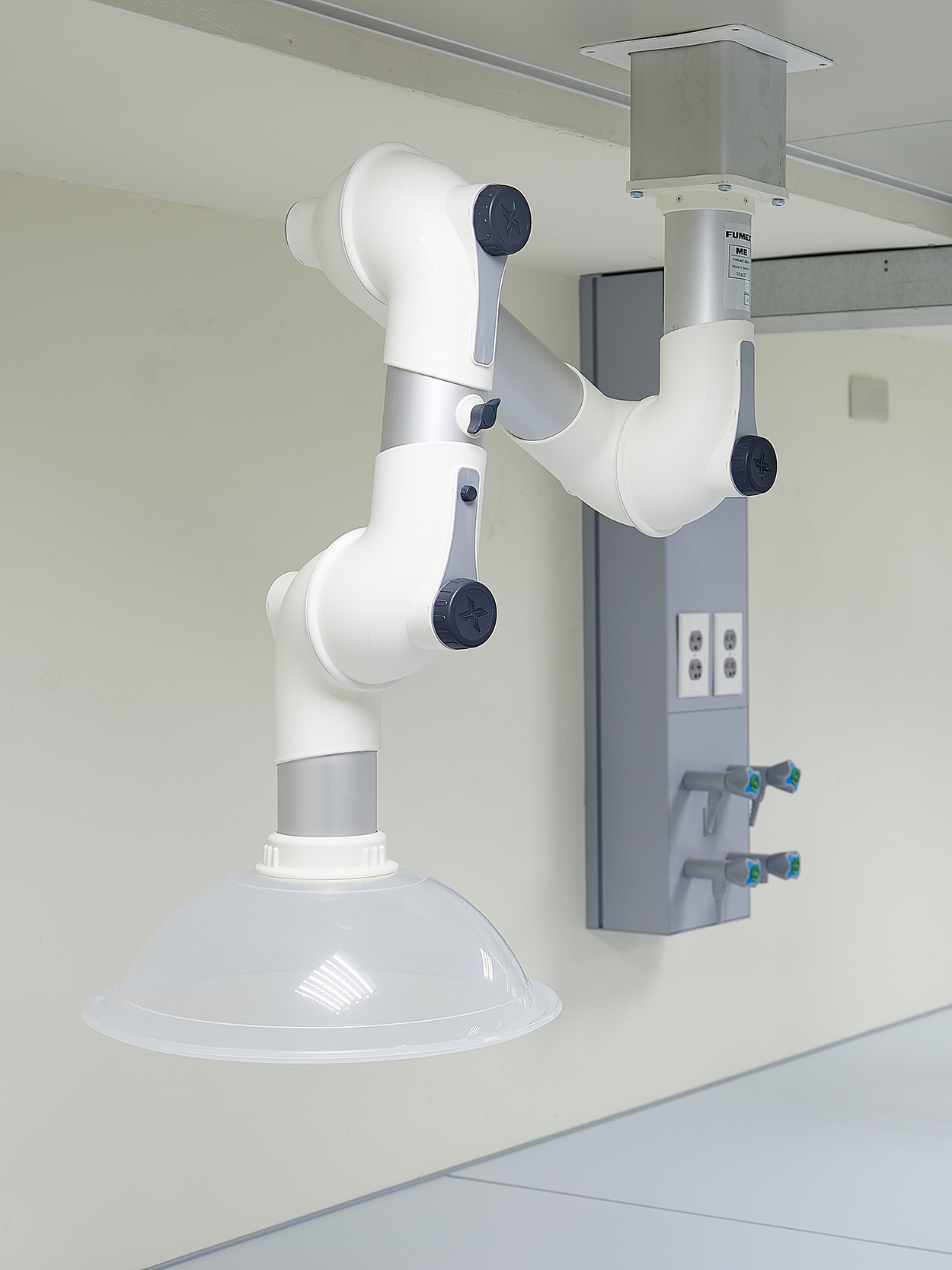

Extraction arm 萬向抽氣罩
Waldner secuflow IONIC
Waldner secuflow IONIC

用途分析

  • 用於特定區域排氣
  • 可固定於功能翼、功能脊、牆壁、或水泥天花板。

技術參數

Dimensions 50 75
Pipe system Ø [mm]1) 50 75
Coupling hood Ø [mm] 350
Extraction maximum [mm] 50 75
1) Pipe system Ø 50 mm only for fastening to the service wing

Ventilation technology 50 75
Minimum air exchange rate [m3/h] 50 100
Admission pressure [Pa] 150
Admission pressure [Pa] with Waldner airflow damper 200

Material
Pipe Anodised aluminum
Hinged bracket Polypropylene
Coupling hood Polycarbonate
Suction tip Anodised aluminum/td>
Underbench exhaust 實驗桌抽氣設備

用途分析

  • 用於特定區域排氣
  • 可固定於功能翼、功能脊、牆壁、或水泥天花板。
Waldner

技術參數


Ventilation technology
Air exchange rate [m³/h] 40
Ventilation connection (ascending duct) Ø [mm] 90
Material
Ventilating pipe PPS
Snorkel hood 抽氣罩
Waldner secuflow IONIC
Waldner secuflow IONIC

用途分析

  • 用於特定抽取煙霧
  • 連接抽氣裝置,安裝於功能脊上

技術參數

Dimensions
Length of pipe system [mm] at Ø 40 mm 1000
Hood Ø [mm] 120
Suction tip [mm] 50

Ventilation technology
Minimum air exchange rate [m³/h] 5
Admission pressure [Pa] 200

Material
Pipe and hood Polypropylene
Housings 固定式抽氣罩

用途分析

  • 用於特定抽取煙霧
  • 固定於功能脊或牆壁上
Waldner

技術參數


Dimensions 1200 1500
Width [mm] 1200 1500
Height x depth [mm] 300 x 600
Admission pressure [Pa] with Waldner airflow damper 200

Ventilation technology 1200 1500
Minimum air exchange rate [m³/h] 480 600
Admission pressure [Pa] 25 30
Admission pressure [Pa] with Waldner airflow damper 150

Material
Extractor hood Polypropylene
