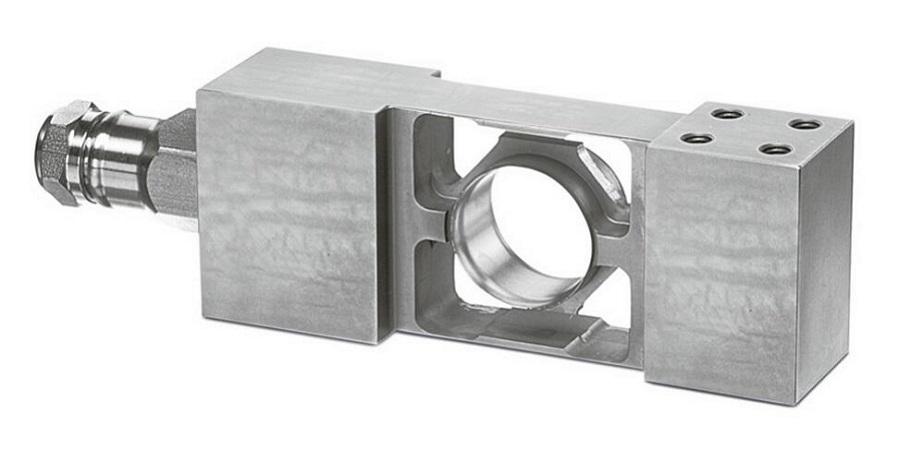

Platform Load Cell Stainless Steel MP 55

Platform Load Cell Stainless Steel MP 55


The MP 55 Platform Weigh Cell is made completely from stainless steel, is available in a load range from 11 kg to 200 kg and platform sizes up to 600 mm x 600 mm. It is specially designed for integration into beltweighers......




Platform Load Cell MP 55

The MP 55 Platform Weigh Cell is made completely from stainless steel, is available in a load range from 11 kg to 200 kg and platform sizes up to 600 mm x 600 mm. It is specially designed for integration into beltweighers, counting scales and checkweighers.
Protection class IP68, IP69K

Platform Load Cell MP 55
  • Full stainless steel construction
  • Hermetically welded seal (IP68, IP69K)
  • Platform size up to 600 mm x 600 mm
  • Approved to OIML R60
  • Ex-Version available (MP55/...E)
  • High Input Impedance
  • Integrated Mounting spacer
Specification

Types:

  • MP 55/ 11kg C3MR+
  • MP 55/ 22kg C3MR+
  • MP 55/ 50kg C3MR+
  • MP 55/100kg C3MR+
  • MP 55/200kg C3MR+

Certificate of conformity Features:

Feature: II 1G and 1D EEx ia IIC T6|T5|T4 130°C, II 1D IP65 T 130°C; Reg. Number: KEMA 04ATEX 1253x

Order number for ATEX load cells:

9408 6.. .....e.g. MP55/10kg C3MR E = 9408 655 07010
