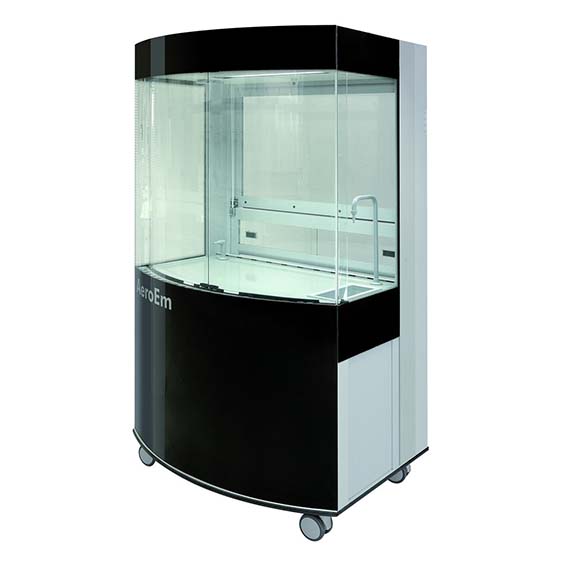

AeroEm 移動式抽風櫃


AeroEm 移動式抽風櫃




AKKURAT Balance Enclosure 安全秤量桌

Waldner secuflow EN7

用途分析

  • 可以在需要時連接功能模組(例如: 服務翼)使用。
  • 可從四面八方無限制地看到抽風櫃
  • 內部工作區的服務網點
  • 服務組件位於抽風櫃內部,控制單元位於水平的服務抽風櫃側面服務面板

技術參數

Dimensions
Width [mm] 1050
Depth [mm] 815
Height [mm] 1975
Working height [mm] 900
Height, castors [mm] 120

Weight
Weight[Kg] 180

Design characteristics
Sash Two-piece, moves up and down with 2 horizontal sashes each
Glass pane in the side wall All 4 sides of the fume cupboard
Lighting Dazzle-free, can be switched from the outside
Roller shutter guiding For pipes and cables on the left and right side of the fume cupboard

Electrics
Electrics supply 2 sockets in the internal workspace, can be switched individually from the outside
Total power of sockets [W] 1000
Connection voltage [V AC] 230
Voltage of waste water lifting unit [V] 230
Power of lighting [W] 52
Length, electrical connection cable [mm] 2500

Sanitary technology
Water connection Optional
Waste water connection Waste water quick release outlet as an option
Gas connection Optional
Water fitting (tap) Cold water WPC or WNC (EN) as an option, with drip cup, can be operated from the outside
Gas outlet Optional

Ventilation technology
Minimum air exchange rate [m³/h] 1) 300
Air-supply assistance fan Can be switched on the FAZ
Function display FAZ
2 extract air spigots Ø [mm] 90
Length of extract air duct [mm] 2500

Material/surface
Worktop Stoneware-composite worktop with raised Polypropylene edge

註解說明:

  • (1)有排風量指標均為面窗開啟500mm高度時(根據EN14175)測試的資料,跟蹤氣體最大值為德國標準(BG RCI )推薦的數值。
    標示的最低換氣率根據EN14175-3規定的測試條件而定。設計通風系統大小時,必須滿足此最低換氣率。
    若現場使用了排風監測系統或者氣流閥,排風量要求會有所不同。運行條件必須征得Waldner同意。
